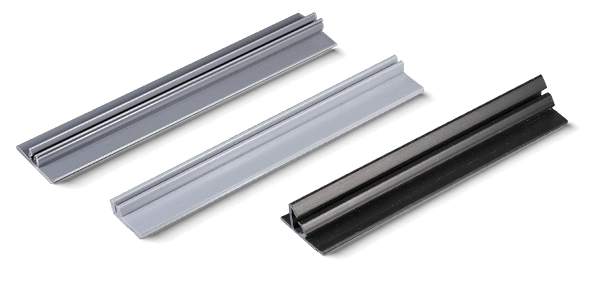

PCB guide LPR60

PCB guide LPR60

GS-rails (with/without adhesive) for vertical PCB guide in 1200 mm length for 1.6 mm PCB thickness

Description
Close
Product description: PCB guide LPR60

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
433038
LPR 6011 GS-SCHIENE UNBEKLEBT
433039
LPR 6021 GS-SCHIENE BEKLEBT
433040
LPR 6012 GS-SCHIENE UNBEKLEBT
433051
LPR 6013 GS-Schiene UNBEKLEBT
433052
LPR 6023 GS-SCHIENE BEKLEBT
433053
LPR 6032 GS-SCHIENE BEKLEBT
Assembly type without adhesive tape with adhesive tape without adhesive tape without adhesive tape with adhesive tape with adhesive tape
Type Type A Type A Type B Type C Type C Type B
Material rigid PVC rigid PVC ABS rigid PVC rigid PVC rigid PVC
Colour grey grey grey black black grey
(A) length-overall in mm 1200 1200 1200 1200 1200 1200
width foot socket in mm 19,1 19,1 15 20,6 20,6 15
Groove depth in mm 4,1 4,1 4,6 - - 4,6
Height foot socket in mm 1,0 1,0 1,5 1,0 1,0 1,5
for PCB thickness 1,6 1,6 1,6 1,6 1,6 1,6
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 HB UL 94 V-0 UL 94 V-0 UL 94 HB
Temperature range 0°C - 60°C 0°C - 60°C 0°C - 60°C 0°C - 50°C 0 °C - 50°C 0°C - 60°C
