PCB guide LPR21

PCB guide LPR21

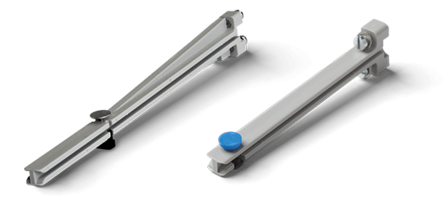

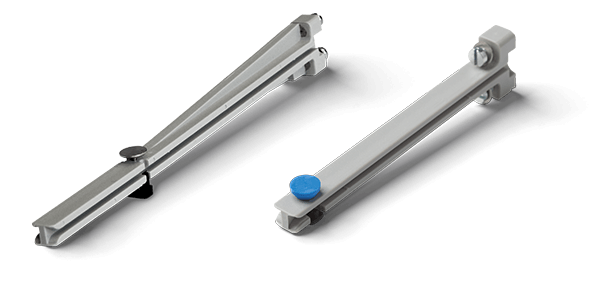

Screwable vertical PCB guide in lengths from 46.5 to 160 mm for 1.6 mm PCB thickness

Description
Close
Product description: PCB guide LPR21

Product variants

4 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402349
LPR 2110 LEITERPLATTENFÜHRUNG
402350
LPR 2111 LEITERPLATTENFÜHRUNG
402351
LPR 2112 LEITERPLATTENFÜHRUNG
402352
LPR 2114 LEITERPLATTENFÜHRUNG
Assembly type screwed screwed screwed screwed
Type Type A Type A Type A Type B
Material nylon 6 nylon 6 nylon 6 nylon 6
Colour grey grey grey grey
(A) length-overall in mm 65,0 90,0 135,0 160,0
width foot socket in mm 18 18 19 19,0
Groove depth in mm 3,0 3,0 3,0 3,0
Height foot socket in mm 7,4 7,4 7,4 7,4
Hole Diameter for mounting in mm M3x0,5 M3x0,5 M3x0,5 M3x0,5
for PCB thickness 1,6 1,6 1,6 1,6
Temperature range -20°C - 140°C -20°C - 140°C -20°C - 140°C -20°C - 140°C
