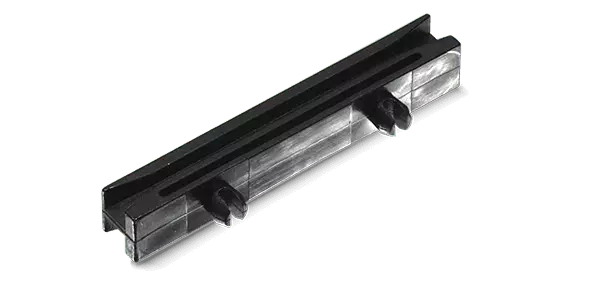

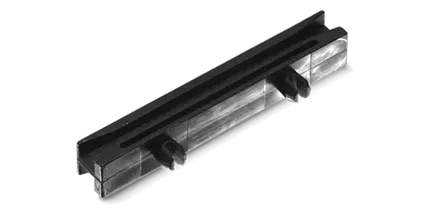

PCB guide ELBH2

Plug-in horizontal PCB guide in lengths from 50.8 to 152.4 mm for PCB thickness max. 2 mm, as PCB double holder version

Quick filter

	406329 ELB H2-50 LEITERPLATTENFÜHRUNG	406330 ELB H2-63 LEITERPLATTENFÜHRUNG	406331 ELB H2-76 LEITERPLATTENFÜHRUNG	406332 ELB H2-88 LEITERPLATTENFÜHRUNG	406333 ELB H2-101	406334 ELB H2-114 LEITERPLATTENFÜHRG.	406335 ELB H2-127 LEITERPLATTENFÜHRG.	406336 ELB H2-139 LEITERPLATTENFÜHRG.	406337 ELB H2-152 LEITERPLATTENFÜHRG.
Assembly type	plug	plug	plug	plug	plug	plug	plug	plug	plug
Type	-	Type B	Type B	Type B	Type B	Type B	Type B	Type B	Type B
Material	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66	nylon 66
Colour	-	black	black	black	black	black	black	black	black
(A) length-overall in mm	50,8	63,5	76,2	88,9	101,6	114,3	127,0	139,7	152,4
(B) Distance between fastening spigots in mm	25,4	38,1	50,8	63,5	76,2	88,9	101,6	114,3	127,0
Groove depth in mm	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2	2,2
Groove width in mm	2,0	2,0	2,0	2,0	2,0	2,0	2,0	2,0	2,0
for PCB thickness	1,6	1,6	1,6	1,6	1,6	1,6	1,6	1,6	1,6
Fire protection class	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0	UL 94 V-0
Temperature range	BLACK	-	-	-	-	-	-	-	-
