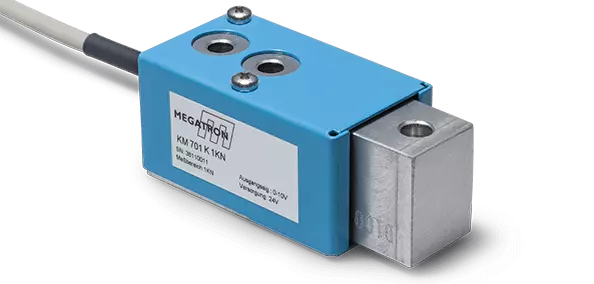

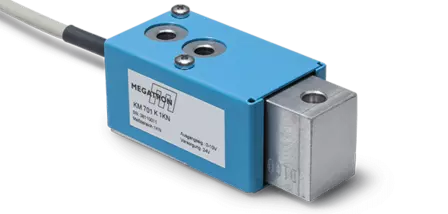

Shear Beam Series KT701

Compact force sensor with integrated analogue measuring amplifier and aluminium measuring body for measuring ranges up to 1 kN

Product is no longer available. Successor product KT703

To the series KT703

  • Aluminium load cell
  • Compact design
Design Shear Beam
Nominal Load From 0..200 N to 0..1 kN
Direction of Force Tension and Compression
Output Signal 4..20 mA with integrated amplifier, 0..10 V with integrated amplifier
Amplifier With Amplifier
Protection Class IP40
Series KT701 force sensors are double bending beam sensors ... more
Product description: Shear Beam Series KT701

Series KT701 force sensors are double bending beam sensors and characterized by its tight shape and its easy way of fastening. It could be fixed with 2 screws at any flat and stable ground. Force application is vertical to sensor-axis.
