S-Beam Load Cell KT1401

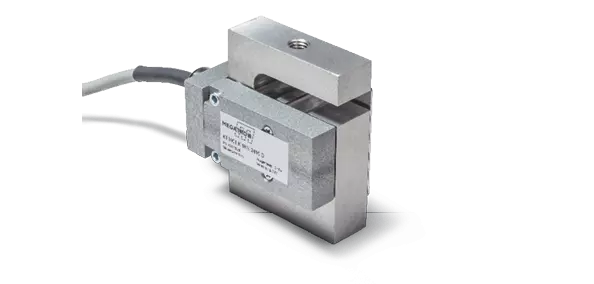

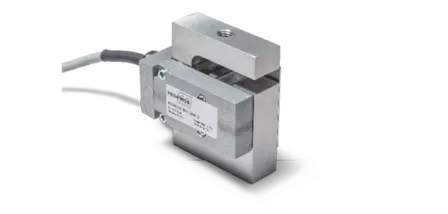

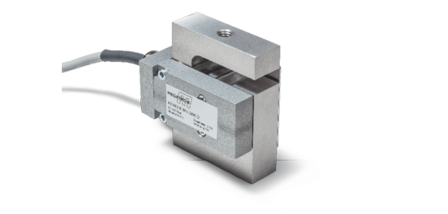

S-Beam Load Cell KT1401

S-Beam Series KT1401

Accurate aluminium S-Beam sensor with integrated amplifier for nominal loads up to 1 kN

Product is no longer available. Successor product KT1403

To the series KT1403

  • With integrated amplifier
  • Force application by internal threads M8
  • Load cell in aluminium
Data sheet
Specifications
Design S-Beam
Nominal Load From 0..50 N to 0..1 kN
Direction of Force Tension and Compression
Output Signal 0..10 V with integrated amplifier, 4..20 mA with integrated amplifier
Protection Class IP54
Amplifier With Amplifier
Description
Series KT1401 force transducer are very compact models and do ... more
Description
Close
Product description: S-Beam Series KT1401

Series KT1401 force transducer are very compact models and do not differ in their dimensions over all offered capacities. Because of their shape (S-Beam) this force transducers are recommended for applications with tension force especially. Force is applicated by M8 internal screw thread. DMS Wheatstonebridges (measuring principle) have delivered an optimal performance since decades and ensures a long lifetime.
