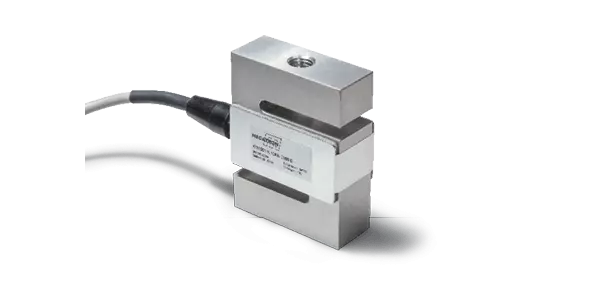

S-Beam KM1501

Accurate aluminium S-Beam sensor for nominal loads up to 10 kN

Product is no longer available. Successor product KM1503

Click to load cell KM1503

Aluminium load cell
Force application by internal threads M12
Calibration with test certificate

Design	S-Beam
Direction of Force	Tension and Compression
Output Signal	2,0 mV/V
Protection Class	IP64
Amplifier	Without Amplifier
Nominal Load	From 0..1 kN to 0..10 kN

Description

Series KM1501 force transducer ... more

Product description: S-Beam KM1501

Series KM1501 force transducer are very compact models and do not differ in their dimensions over all offered capacities. Because of their shape (S-Beam) this force transducers are recommended for applications with tension force especially. Force is applicated by M12 internal screw thread. DMS Wheatstonebridges (measuring principle) have delivered an optimal performance since decades and ensures a long lifetime.
