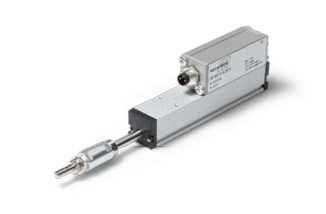

Potentiometric Linear Transducer Series SPI18E with electronics

Potentiometric linear transducer with integrated signal-converter in a compact industrial design

Product is no longer available!

Take a look at our current linear sensors

  • easy electronic integration with 24VDC power supply and 0...10V or 4...20mA output signal
  • economic and proved potentiometer technology with conductive plastic
  • compact industrial design
  • easy mechanic coupling by link ball on push rod
  • long lifespan
  • high accuracy because of high resolution and good linearity
Specifications
Effective electrical travel From 25 to 200 mm in 6 variants
Sensor Technology Potentiometric
Protection Class IP40
Resolution Analogue stepless
Mechanical Detection Type Front and rear side push rod without spring return
Description
In advancement of the standard SPI18 linear sensor series, the ... more
Description
Close
Product description: Potentiometric Linear Transducer Series SPI18E with electronics

In advancement of the standard SPI18 linear sensor series, the E-Version, SPI18E, is realized for better electronic integration. The mechanical detection of linear movement is done by a front guided push rod with accurate sleeve bearings. To avoid vertical or angular misalignment in the mechanical coupling, the push is equipped with a link ball. Due to his compact industrial design with 18x18mm in the profile and his front guided push rod construction, a space-saving integration can be reached up to 200 mm measurement stroke. To ensure high accuracy and long lifetime for a good price performance ratio, the potentiometric measuring principle is realized with a high-resolution conductive plastic resistance element. For facilitating electronic integration, the SPI18E series is equipped with an electronic signal converter board inside the plug housing. Instead of delicate reference voltage, a simple 24VDC±20% power supply can be used. The analogue signal is provided in the typical form with 0…10VDC or 4…20mA. To stable the output signal in the voltage version 0…10V up to 2mA can be driven (for the pure potentiometric signal only 0,001mA is conventional). In comparison to the pure potentiometric transducer, the E-version keeps the true power on function and temperature stability quite good and is EMC approved. For mounting, there are four fixing clamps in the scope of supply. The SPI18E series is available with plug or cable connection.
