Potentiometric Linear Transducer CI18

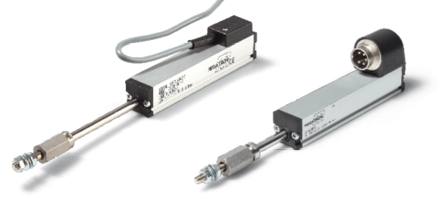

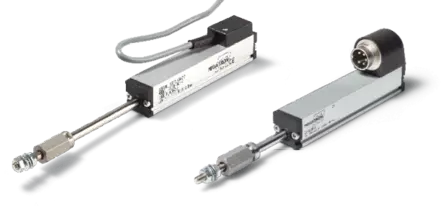

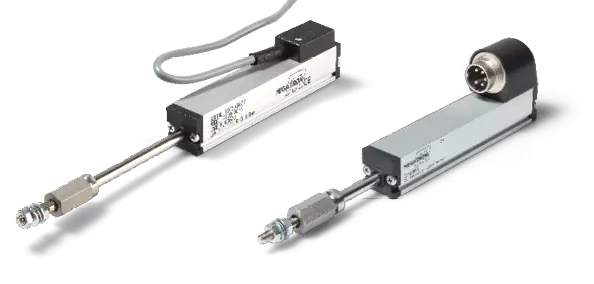

Displacement sensor in compact 18 x 18 mm industrial design with front guided push rod and ball joint for 25 to 150 mm strokes

This product is not recommended for new design in – Alternative product SPI18

To the series SPI18

  • In a compact industrial design
  • Front guided push rod and ball joints
  • Long lifespan and accuracy
  • Linear potentiometer with almost infinite resolution
  • Measuring lengths from 25 mm to 150 mm
Data sheet
Specifications
Effective electrical travel From 25 to 150 mm in 6 variants
Sensor Technology Potentiometric
Protection Class IP40
Resolution Analogue stepless
Mechanical Detection Type Push rod without spring return
Electrical Outlet Type Round Cable, Connector
Electr. output signal (voltage - potentiometric)
Max. operating temperature +105 °C
Min. operating temperature -30 °C
Supply voltage Potentiometric
Description
The CI18 linear transducers are used in industrial applications ... more
Description
Close
Product description: Potentiometric Linear Transducer CI18

The CI18 linear transducers are used in industrial applications which requiring a compact sensor with ball joints, long lifespan, high accuracy and a front guided push rod in measuring lengths from 25 to 150 mm.

In the displacement sensor series CI18, the mechanical detection of linear movement is done by a front guided push rod. On the push rod, a ball joint is mounted to avoid vertical or angular misalignment in the mechanical coupling. Due to the compact and robust industrial aluminium design in 18x18 mm profile, measurement stroke can be reached up to 150 mm. The CI18 sensor is available with plug or cable connection.
To ensure high accuracy and long lifespan, the potentiometric measuring principle is realized with a high-resolution conductive plastic resistance element. Since the potentiometric measuring principle delivers absolute values and requires no electronic conversion, the position feedback signal is true power on without delay, temperature stable and robust against EMC influences. Customization on the cable (length, finishing with plug) or on the push rod (length, thread, flat ...) are available on request.
