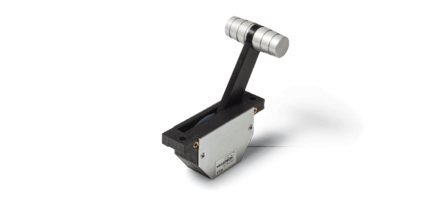

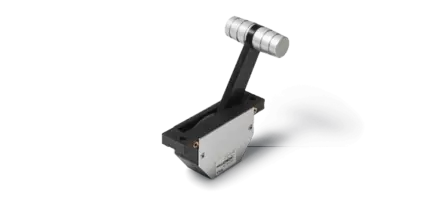

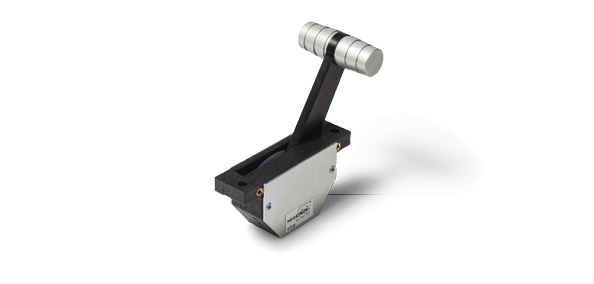

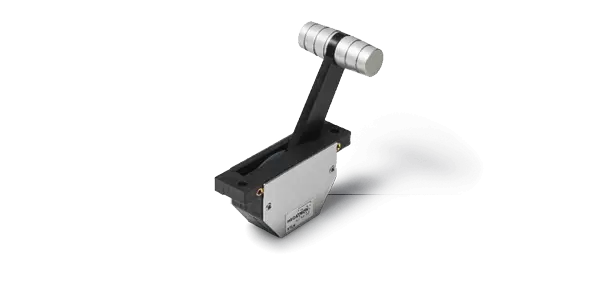

Finger Joystick Series XTbar

Fader for constant operation forces - through lifetime

  • 1 axis
  • Sensitive response characteristics
  • Low signal noise
  • 12 bit resolution
  • Analog or PWM outputs
  • Precision ball bearing with PTFE guides
Data sheet
Size Finger Joystick
Technology Hall Effect
Axes 1
Return Mechanism Friction Clutch
Output interface Analog or PWM
Housing depth under panel ≤ 37 mm
Limiter plate Slotted y direction (1 axis)
The precision fader controllers of the series XTBar guarantee ... more
Product description: Finger Joystick Series XTbar

The precision fader controllers of the series XTBar guarantee for a premium gliding feel

Faders of the XTbar series were designed for applications which not only require a low signal noise, but especially profit from constant operation forces over lifetime. This enables the user to concentrate on his real work - without the need to handle drifting operation forces. That is precision for your design and success.

  • For indoor use
