Rotary Encoder Kit MxB22AH
Rotary Encoder Kit MxB22AH

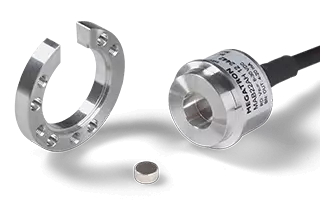

Contactless Hall Effect Encoder Series MIB22H

Hermetically sealed kit-encoder with incremental interface for use in rough environment

Product is no longer available!
Data sheet
Specifications
Sensor technology Hall Effect Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop
Resolution resolution 1..128 ppr. free selectable, 256, 512, 1024
Output signal incremental, read out of the absolute position optionally possible
Protection class Up to IP67
Mounting Clamp ring
Description
22 mm housing diameter Resolution up to 1024 ppr 2 channels ... more
Description
Close
Product description: Contactless Hall Effect Encoder Series MIB22H
  • 22 mm housing diameter
  • Resolution up to 1024 ppr
  • 2 channels + reference pulse
  • Supply voltage: 5 V, 8…30 V
  • Interfaces: Open Collector, TTL
  • Read out of the absolute position possible due to counting up (option EI3)
  • IP67 protection class
  • No wear parts (kit encoder)
  • Fine adjustment by a free rotatable mounting ring
