Magnetical Linear Transducer OMS2

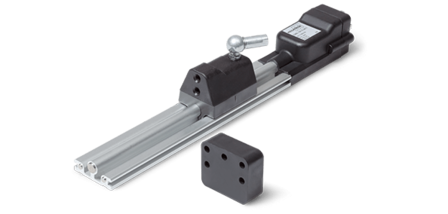

Magnetic (magnetostrictive) Linear Transducer OMS2

EMC resistant analog high-resolution displacement sensor for 50 to 1500 mm measuring strokes in flat design and protection class IP67

  • Measurement from 50..1500 mm
  • Wear-free measuring principle and absolute analogue signal
  • Direct and inverse analog output
  • For harsh conditions IP67
  • Very flat construction with only 14 mm
  • High precision due to high resolution and good linearity
  • Electromagnetic compatibility 2014/30/EU (EMC)
Effective electrical travel From 50 to 1500 mm in 31 variants
Sensor Technology Magnetostrictive
Protection Class IP67
Mechanical Detection Type Guided or free cursor
Electrical Outlet Type Connector
Mounting Mounting Brackets / Assembly Block
Actuating speed ≤ 10 m/s
Resolution Analogue stepless
Ind. linearity (best) ±0.04%
Min. operating temperature -20 °C
Max. operating temperature +75 °C
Supply voltage 24 V
Electr. output signal 4..20 mA, 0..10 V
Minimum overall length Medium (15 to 50 cm), Long (> 50 cm)
Description
Close
Product description: Magnetic (magnetostrictive) Linear Transducer OMS2

The OMS2 linear sensor series are used in harsh environments who requiring a robust, contactless and flat sensor with a very long lifespan in 50 to 1500 mm. The high performance in terms of EMC immunity make the linear sensor suitable for use in industrial environments with presence of electromagnetic interferences.

The OMS2 series (OMS2 is the successor of the OMS series with significantly improved EMC compatibility) detects the mechanical linear movements with a guided or a free cursor. The position evaluation of the magnetic cursor is transformed contactless into a linear analogue signal. The magnetostrictive measurement principle is true power on. The free cursor tolerates mechanical offset up to ±2 mm in vertically and horizontally position. The cursor with ball joints compensates vertical and horizontal offset. This permits applications with critical shock or vibration influences. Due to the absence of the push rod and with the flat design, the displacement sensor can be integrated in a space-saving manner for applications that need a robust construction in IP67 and measurement from 50 to 1500 mm. The measuring principle is contactless and thus enables a very long lifespan of the sensor. The displacement sensor is mounted overhead with clamps.

  • Measurement from 50..1500 mm
  • Wear-free measuring principle and absolute analogue signal
  • Suitable for heavy duty applications IP67
  • Flat design with 14 mm installation height
  • High accuracy because of high resolution and a good linearity

We offer many adaptations on request for example:
Cable assemblies with or without connectors and much more. Please use our inquiry form and describe for which application you want to use the product so that we are able to determine the optimal product for your design-in.
