Magnetical Linear Transducer IMS

Magnetic Linear Transducer IMS

Absolute linear transducer with very high accuracy, protection class IP67 and max. 500 bar peak for 50 to 4000 mm strokes

  • Very accurate measuring principle up to 4000 mm
  • Suitable for applications up to 500 bar peak
  • For heavy duty applications IP67
  • Absolute true power on signal
Effective electrical travel From 50 to 4000 mm in 28 variants
Sensor Technology Magnetostrictive
Protection Class IP67
Mechanical Detection Type Unguided Cursor
Electrical Outlet Type Round Cable, Connector
Mounting Flange
Actuating speed < 10 m/s
Resolution Analogue stepless
Ind. linearity (best) ±0.02%
Min. operating temperature -30 °C
Max. operating temperature Up to +90 °C
Supply voltage 18..30 V, 12 V
Electr. output signal 4..20 mA, 0..5 V, 0..10 V
Minimum overall length Medium (15 to 50 cm), Long (> 50 cm)
Description
Close

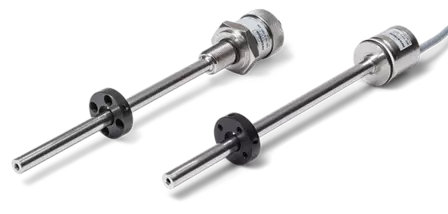

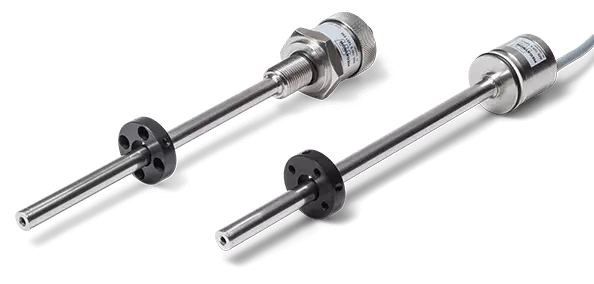

Product description: Magnetic Linear Transducer IMS

The displacement sensor is suitable for hydraulic applications up to 350 bar (500 bar peak). For mechanically integration, the housing provides a flange construction with fitting gauge or thread. The mechanical detection of the linear movement is done by a cursor ring without pushrod. A special feature is the great tolerance in vertical or horizontal direction of the free magnetic cursor. The position evaluation of the magnetic cursor is transformed contactless into a linear absolute analogue signal and is true power on. The very high accuracy is given by ±0,02% linearity and high resolution up to 10 µm. Even for measuring path beyond 300 mm the IMS is a high performer. The contactless measurement principle allows a very long lifespan.
