Drawing LED mounts ELBLR33
LED holder ELBLR33E

LED holder ELBLR33

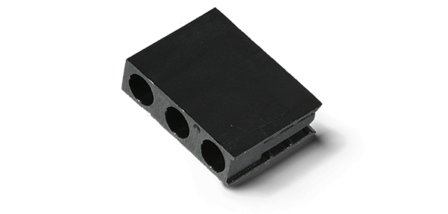

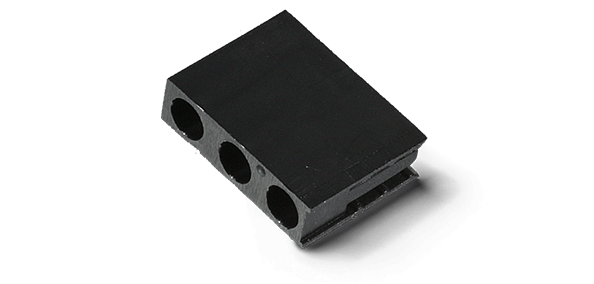

Triple LED holder for Ø3.3 LED for mounting these holders in a row or alone on the circuit board

Description
Close
Product description: LED holder ELBLR33

Product variants

4 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
405110
ELB LR-33RM 90° DREIF.-LED-HALTER
405111
ELB LR-33RR DREIF.-LED-HALTER
405154
ELB LR-33E DREIF.-LED-HALTER
406154
ELB LR-33RL DREIF.-LED-HALTER
Type RM RR E RL
Material nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Colour black black black black
Widths in mm 4,3 4,3 4,3 4,3
Ø Inner in mm 3,3 3,3 3,3 3,3
Height "H" in mm 15,2 15,2 15,2 15,2
Depth in mm 11,4 11,4 11,4 11,4
Number of employed LEDs 3 3 3 3
Holder mountable at holder Yes Yes No Yes
LED Size 3 mm 3 mm 3 mm 3 mm
