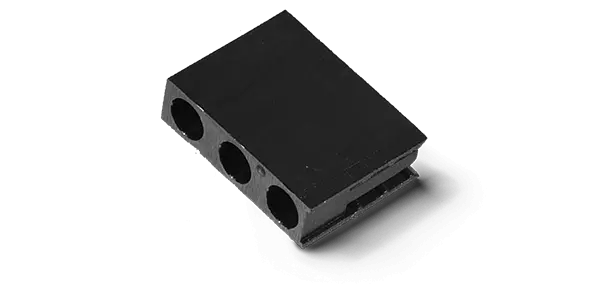

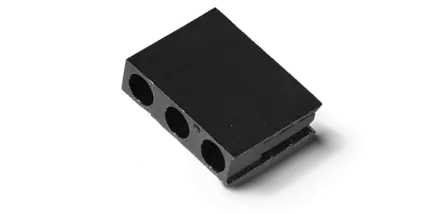

LED holder ELBLR33
Triple LED holder for Ø3.3 LED for mounting these holders in a row or alone on the circuit board
| 405110 ELB LR-33RM | 405111 ELB LR-33RR | 405154 ELB LR-33E | 406154 ELB LR-33RL | |
|---|---|---|---|---|
| Type | RM | RR | E | RL |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 |
| Colour | black | black | black | black |
| Widths in mm | 4,3 | 4,3 | 4,3 | 4,3 |
| Ø Inner in mm | 3,3 | 3,3 | 3,3 | 3,3 |
| Height "H" in mm | 15,2 | 15,2 | 15,2 | 15,2 |
| Depth in mm | 11,4 | 11,4 | 11,4 | 11,4 |
| Number of employed LEDs | 3 | 3 | 3 | 3 |
| Holder mountable at holder | Yes | Yes | No | Yes |
| LED Size | 3 mm | 3 mm | 3 mm | 3 mm |
