Drawing LED mounts ELBLR31
LED holder ELBLR31E

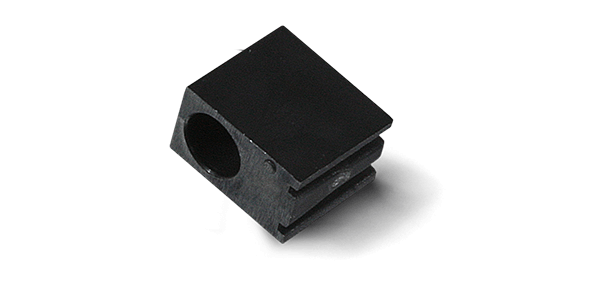

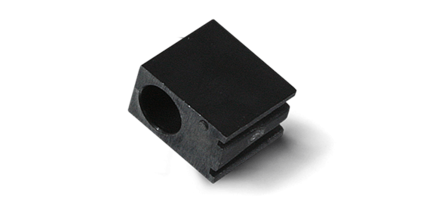

LED holder ELBLR31

Single LED holder for Ø3.4 or Ø3.8 mm LED for mounting these holders in a row or alone on the circuit board

Description
Close
Product description: LED holder ELBLR31

Product variants

4 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
403965
ELB LR-31RM 90° LED-HALTER
404496
ELB LR-31E EINZEL-LED-HALTER
405606
ELB LR-31RL EINZEL-LED-HALTER
405607
ELB LR-31RR EINZEL-LED-HALTER
Material nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 -
Colour black black black black
Widths in mm 4,3 4,3 4,3 4,3
Ø Inner in mm 3,4 3,4 3,4 3,4
Height "H" in mm 7,2 7,2 7,2 7,2
Depth in mm 6,4 6,4 6,4 6,4
Number of employed LEDs 1 1 1 1
Holder mountable at holder Yes No Yes Yes
Light redirectors angle 90 90 90 90
LED Size 3 mm 3 mm 3 mm 3 mm
