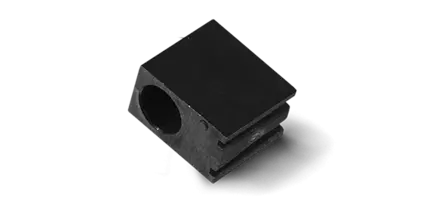

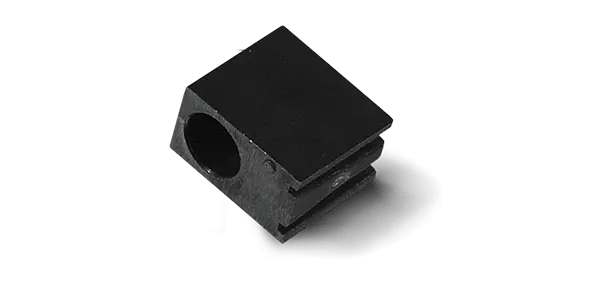

LED holder ELBLR31
Single LED holder for Ø3.4 or Ø3.8 mm LED for mounting these holders in a row or alone on the circuit board
| 403965 ELB LR-31RM | 404496 ELB LR-31E | 405606 ELB LR-31RL | 405607 ELB LR-31RR | |
|---|---|---|---|---|
| Type | RM | E | RL | RR |
| Material | nylon 66 | nylon 66 | nylon 66 | nylon 66 |
| Fire protection class | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | - |
| Colour | black | black | black | black |
| Widths in mm | 4,3 | 4,3 | 4,3 | 4,3 |
| Ø Inner in mm | 3,4 | 3,4 | 3,4 | 3,4 |
| Height "H" in mm | 7,2 | 7,2 | 7,2 | 7,2 |
| Depth in mm | 6,4 | 6,4 | 6,4 | 6,4 |
| Number of employed LEDs | 1 | 1 | 1 | 1 |
| Holder mountable at holder | Yes | No | Yes | Yes |
| LED Size | 3 mm | 3 mm | 3 mm | 3 mm |
