Inductive LVDT Linear Transducer EVT

Inductive Linear Transducer EVT

Robust miniature displacement sensor for small measuring strokes from 1.3 to 25 mm in difficult environmental conditions, max. IP68/pressure-tight up to 30 bar

  • For difficult environmental conditions (max IP68 / 30bar)
  • Miniature design max. Ø9.5 mm
  • Very accurate measuring principle for small measuring strokes
  • Measuring strokes from ±0.65 to ±12.5 mm
  • Very long lifespan
  • Suitable for high dynamics
  • On request for temperature ranges up to 200 °C
LVDTProtection class IP68
Effective electrical travel From 1.3 to 25 mm in 6 variants
Sensor Technology Inductive (LVDT)
Protection Class Up to IP68
Mechanical Detection Type Front side push rod with spring return or loose push rod
Electrical Outlet Type Round Cable
Mounting Mounting Brackets / Assembly Block
Resolution Analogue stepless
Ind. linearity (best) ±0.1 % … ±0.5% (dep. on option)
Min. operating temperature -20 °C
Max. operating temperature +125 °C
Supply voltage 5 V rms, 5 kHz (0,5..7 V rms, 2..10 kHz )
Electr. output signal (inductive - LVDT without electr.)
Minimum overall length Small (< 15 cm), Medium (15 to 50 cm)
Product description: Inductive Linear Transducer EVT

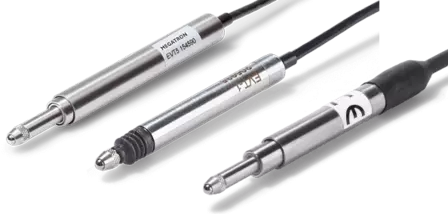

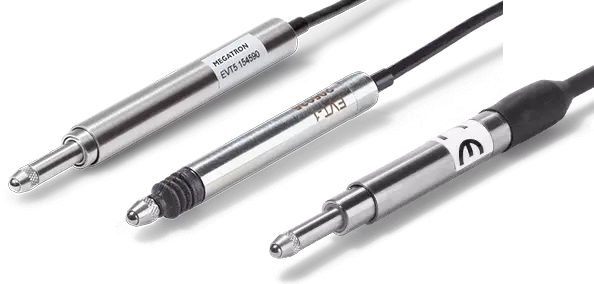

The inductive and very compact displacement sensors of the EVT series are designed for small measuring strokes from ±0.65 to ±12.5 mm. The mechanical detection of linear movement is done by a front guided push rod with inside spring return device (EVT/EVTW) or loose push rod (EVTL/EVTWL). Versions in IP64 (EVT / EVTL) and in IP68 (EVTW / EVTLW) are available. In addition, for corresponding applications, the IP68 versions are available in a pressure-tight version up to max. 30 bar. The EVTB versions are inductive displacement transducers with attractive price structure in IP64 design and are available as probe with internal spring return or loose core.
The inductive measurement principle of the EVT is configured with a cast spool in LVDT winding without external electronic amplifier. Due to the contactless measurement principle, long lifespan can be reached and permits high dynamic application, especially if small oscillating movement has to be detected. Due to its good linearity with <± 0.5% (optional <± 0.1%) and high resolution, the EVT offers a high accuracy. The EVT is characterized in particular by its compact mini-design with only Ø8…9.5 mm and can be integrated space-saving in difficult environmental conditions.
