Inductive LVDT Linear Transducer EDC

Inductive Linear Transducer EDC

Compact LVDT displacement sensor with integrated electronics in two designs for small measuring strokes from 2 mm to 50 mm

  • Very accurate for small measuring strokes (2…50 mm)
  • In 2 designs (probe or loose core)
  • For harsh environmental conditions (up to IP67)
  • Very long lifespan
  • Suitable for high dynamics
  • Absolute analogue signal
Effective electrical travel From 2 to 50 mm in 4 variants
Sensor Technology Inductive (LVDT)
Protection Class Up to IP67 (standard IP65)
Mechanical Detection Type Front side push rod with spring return or loose push rod
Electrical Outlet Type Round Cable, Connector
Mounting Flange, Mounting Brackets / Assembly Block
Resolution Analogue stepless
Ind. linearity (best) ±0.25% … ±0.75% (dep. on option)
Min. operating temperature 0 °C
Max. operating temperature +60 °C
Supply voltage 24 V
Electr. output signal 0..20 mA, 4..20 mA, 0..10 V
Minimum overall length Small (< 15 cm), Medium (15 to 50 cm)
Product description: Inductive Linear Transducer EDC

The mechanical detection of linear movement is done by a front guided or loose push rod.

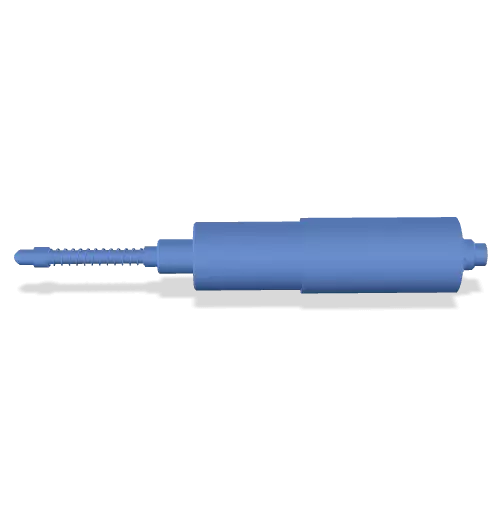

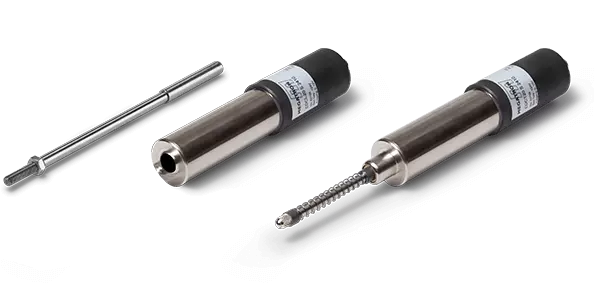

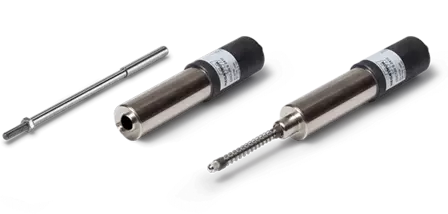

Available are LVDT linear sensor versions as spring-suspended probe tip (EDCT) with outside spring return device and with a loose push rod (EDCL). The inductive measurement principle of the EDC is configured with a cast spool in LVDT winding. In the sensor housing, the electronics are integrated, which converts the position into a linear analogue signal. Due to the contactless measurement principle, long lifespan can be reached and permits high dynamic application, especially if small oscillating movement has to be detected. The inductive measurement delivers absolute values, is true power on and has high resolution also for movement in micro step. The robust construction of the inductive EDC with IP65 (optional IP67) sealing permits the use also in heavy-duty applications.
