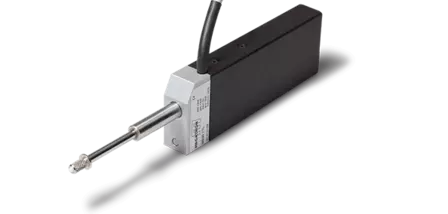

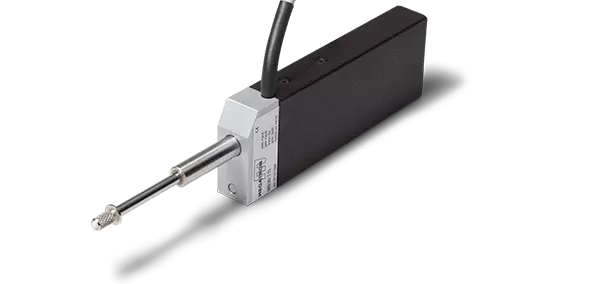

Incremental Linear Transducer MSO
Incremental linear transducer with high resolution up to 1 µm and output channels A, B for strokes from 12 to 50 mm
- High resolution up to 1 µm
- Output channels A, B
- Linedriver, Open Collector or TTL
- High quality ball cage bearing
- Easy mounting on 8h6mm shaft
- Glass scale for temperature stable counting pulses
Specifications
| Effective electrical travel | 12 mm, 30 mm, 50 mm |
|---|---|
| Sensor Technology | Incremental (Optical) |
| Protection Class | IP40 |
| Resolution | 1, 2, 5, 10 µm |
| Mechanical Detection Type | Front side rod with/without spring return |
| Electrical Outlet Type | Round Cable |
| Mounting | Screw Mounting / Bore Holes |
| Electr. output signal | Line Driver, Open Collector, TTL |
| Actuating speed | < 0.5 m/s |
| Max. operating temperature | +50 °C |
| Min. operating temperature | 0 °C |
| Minimum overall length | Small (< 15 cm), Medium (15 to 50 cm) |
| Supply voltage | 5 V |
Description
In the MSO displacement sensor series, the mechanical detection ... more
Description
CloseProduct description: Incremental Linear Transducer MSO
In the MSO displacement sensor series, the mechanical detection of linear movement is done by means of a front-guided push rod with internal spring return. To achieve excellent accuracy, the push rod is guided by a high quality ball bearing cage. The cage is located inside the shaft with a fitting diameter of 8mmh6. An accurate glass scale is mounted on the push rod. Inside the sensor housing, the glass scale passes an electronic board with an optical detector which generates counting pulses in TTL or Line Driver level up to 1 µm resolution. Due to the glass material, the measurement is very temperature stable.
