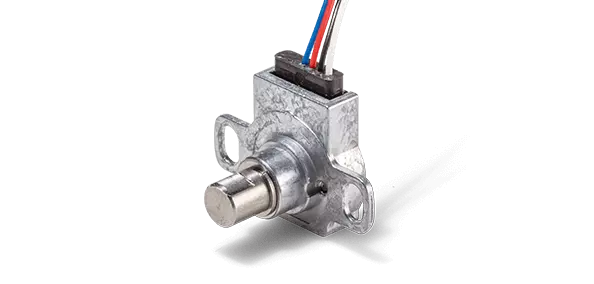

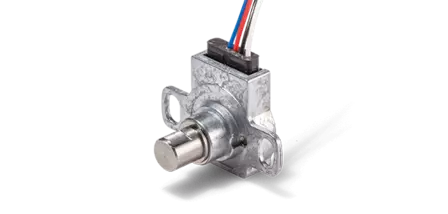

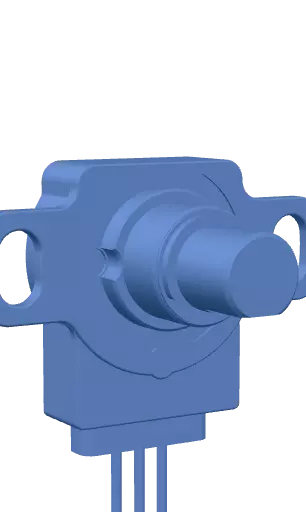

Hall effect singleturn flange encoder HSM14F

Miniature encoder with wide operating temperature range and IP65 protection in Ø6.2 mm housing

  • Wide operating temperature range -40 to 105°C
  • Also, available with redundant electronics
  • Only 6.2/14 mm housing depth/width
  • 5 V supply
  • IP65
  • Sleeve bearing
VDCProtection class IP65
Data sheet
Specifications
Sensor technology Hall Effect Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop
Resolution Absolute 12 bit
Output signal Analogue
Electrical connection Radial
Protection class IP65
Mounting Bushing
Shaft diameter 6.00 mm
Housing diameter 14 mm
Housing depth 6.2 mm
Description
The HSM14F is an extremely compact flange-mounted Hall encoder. ... more
Description
Close
Product description: Hall effect singleturn flange encoder HSM14F

The HSM14F is an extremely compact flange-mounted Hall encoder. The HSM14F is also available with redundant electronics for increased operational reliability. The wide operating temperature range and high IP protection class also make the encoder suitable for applications with increased environmental requirements.
