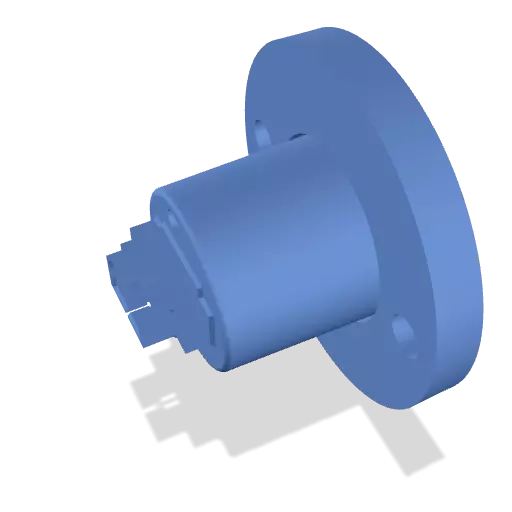

Hall-effect absolute encoder MAB12AH

Miniature kit encoder in Ø12.7 mm housing with PWM or analogue output

  • Only Ø12.7 mm housing
  • Suitable for shafts from Ø2 mm…6.35 mm
  • Mounting ring and push on magnet are part of delivery
  • Supply voltage 5 VDC
  • Output signal analogue absolute or PWM
  • Integrated MOLEX connector
VDCPWM signal
Data sheet
Compare
Remember
Specifications
Sensor technology Hall Effect Encoder
Effective electrical angle of rotation max. 360°
Functions / Features Without mech. stop, Kit-Encoder
Resolution Absolute 12 bit, Absolute 10 bit
Output signal PWM, Analogue
Electrical connection Axial, Connector
Protection class IP40
Mounting Clamp ring
Shaft diameter 2.00 .. 6.35 mm
Housing diameter 12 mm
Housing depth min. 13.9 mm
Description
Extremely compact Hall Kit Encoder supplied as a complete, ... more
Description
Close
Product description: Hall-effect absolute encoder MAB12AH

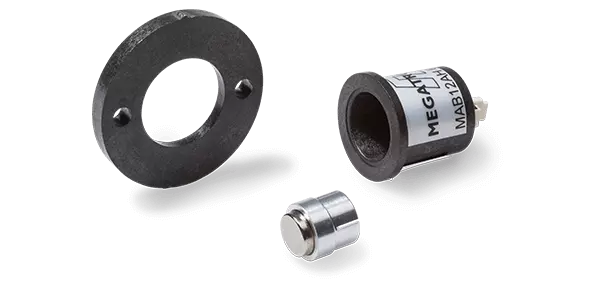

Extremely compact Hall Kit Encoder supplied as a complete, ready-to-install package. The package consists of the encoder, a mounting ring and the appropriate magnet holder and magnet for the shaft. The MOLEX connector makes it easy to connect the encoder to the evaluation unit. This improves handling during installation and service.
