Finger Joystick TRY21

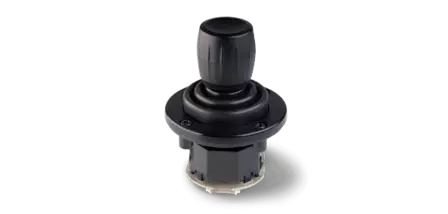

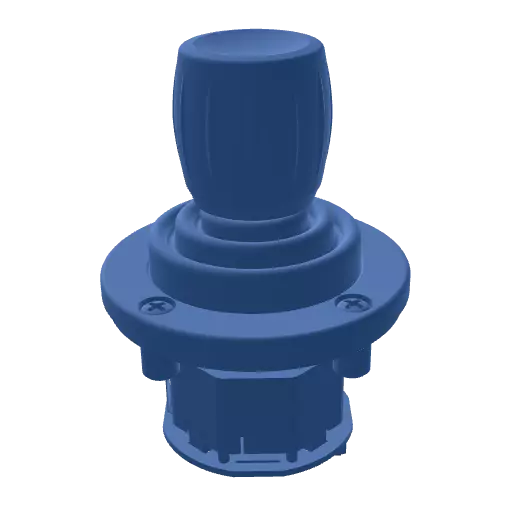

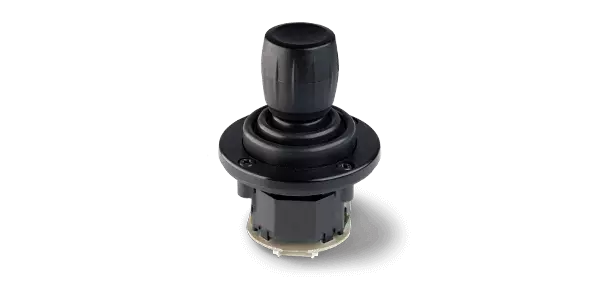

Finger-Tip Joystick TRY21

Lowest profile 3-axis finger joystick on the market thanks to the rotatable handle

  • 3 axes due to rotatable handle
  • Particularly low height above the panel (41 mm in centre, 43 mm if deflected)
  • Outstanding quality of mechanics and sensors for many years of reliable operation
  • Contactless, wear-free Hall sensor technology for consistent signal quality over the entire service life
  • Redundant output signals optionally possible for particularly safety-critical applications
VDC
Axes 3
Output interface Analogue voltage output
Size Finger Joystick
Return Mechanism Spring Return
Technology Hall Effect
Housing depth under panel 31...≤40 mm
Number of Pushbuttons 0
Sealing above panel Dust and spray water protection (IP54 or better)
Limiter plate Square
Supply voltage 5 V
Description
Close
Product description: Finger-Tip Joystick TRY21

One of a kind: The TRY21 offers 3 axes with lowest profile for fingertip operation

The joysticks of the TRY21 series are unique in their class thanks to their rotatable mechanics that detect the rotation not inside the handle, but below panel instead. Therefore space above panel is saved, which makes the TRY21 the lowest profile fingertip joystick with z-axis on the market.

The high-quality haptics convey a secure operating feel and enable the user to precisely control movements in up to three dimensions. Double (redundant) outputs are optionally available, which enable use in safety-critical applications.

The choice falls on the TRY21 in particular for the following requirements:

  • If the space above the joystick is limited, but control of 3 axes is required
  • When "conventional" finger joysticks do not meet the high demands of the application
  • If similar products need to be replaced

The TRY21 series is particularly popular for installation in consoles of special machines: when resting the wrist on a console, the TRY21 with its low profile enables a comfortable operation
