Finger Joystick TRY22

Three-axis industrial joystick of the highest quality in terms of mechanics, materials and workmanship.

  • Exceptional quality of mechanics and sensors
  • For demanding applications
  • Contact-less, wear-free Hall effect technology
  • Redundant outputs available
  • IP65 protection (above panel)
VDCProtection class IP65
Data sheet
Specifications
Size Finger Joystick
Technology Hall Effect
Axes 2, 3
Return Mechanism Spring Return
Output interface Analogue voltage output
Housing depth under panel ≤ 39 mm
Number of Pushbuttons 0, 1
Sealing above panel IP65
Limiter plate Square
Description
Wherever durability and reliability are paramount, the TRY22 ... more
Description
Close

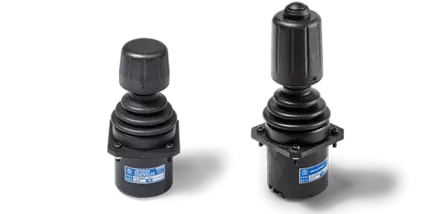

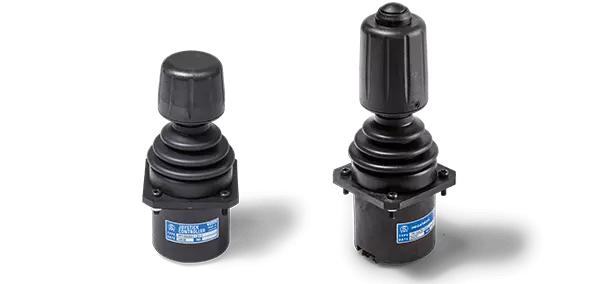

Product description: Finger Joystick TRY22

Wherever durability and reliability are paramount, the TRY22 range of premium joysticks is the first choice for compact finger joysticks, with solid mechanical construction and high quality feel.

No other compact finger joystick matches the quality of the TRY22 series in terms of mechanics, materials and workmanship. The joysticks guarantee success in demanding applications with up to 3 axes, where no compromises are made in terms of durability and reliability.
Non-contact Hall technology ensures wear-free operation of the sensor. Redundant sensors are available as an option for safety critical applications. IP65 protection is standard on all rotary handle versions.
The high quality of manufacture results in a convincing haptic that enables the operator to precisely control machine movements for up to 3 axes, even in safety-critical applications.
