Finger Joystick TRY100

Almost all application needs to be combined in one joystick series thanks to the extensive selection of handles, limiters and output options

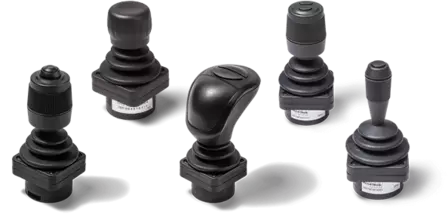

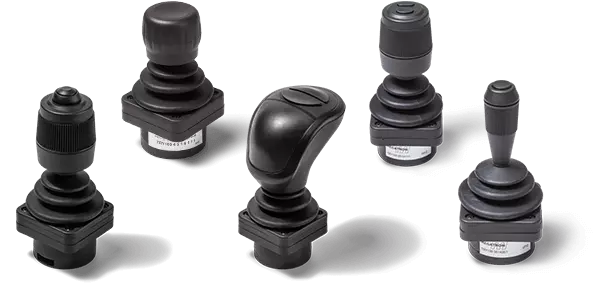

  • Variety of handle shapes
  • Good cost/performance ratio
  • Installation depth from 26 mm
  • 1 to 3 axes
  • Optional redundant Hall sensors
  • Optional with digital interfaces (CANopen, CAN J1939, USB)
VDCUSB connectionProtection class IP67
Axes 1, 2, 3
Output interface Analogue voltage output, USB, CANopen, CAN J1939, Voltage regulator
Size Finger Joystick
Return Mechanism Spring Return
Technology Hall Effect
Housing depth under panel ≤ 26 mm
Number of Pushbuttons 0, 1, 2, 3, ≥4
Sealing above panel IP55 and IP67 handles available
Limiter plate Square, Round, Plus, Slotted y direction (1 axis), Slotted x direction (1 axis)
Product description: Finger Joystick TRY100

The joysticks of the TRY100 series cover a great variety of different applications due to their high number of configuration options, and convince technically in every respect

The TRY100 is the all-rounder in the field of finger joysticks because of the extensive selection of handles, limiters and output options. It offers conventional handle designs as well as modern look & feel variants, in addition analogue outputs and digital interfaces. Optionally, redundant sensors are available. Thus, the joysticks can be optimized for almost all possible applications.
With the convenient plug-in contact and the small installation depth of < 26 mm, the joystick offers unequalled opportunities in case of space-limitations below the panel. Due to its modern contact-less hall-sensors, the electro mechanics guarantee for a long mechanical life expectancy of 5 million operations. The construction is laid-out for a load resistance up to 200 N, and improved handle options offer protection up to IP67 above the panel.

The joystick is available in different desktop variants with up to 5 push buttons.

Application examples:

Joysticks for medical technology solutions

Joysticks for safety engineering solutions
