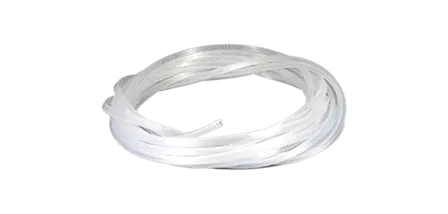

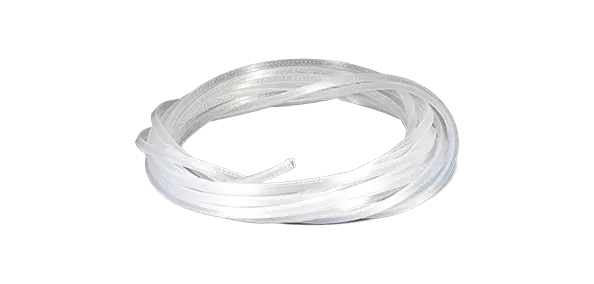

Edge protection LPR401PK

Edge protection with pressure-sensitive adhesive as yard ware for panel thicknesses from 0.9 to 4.2 mm

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
407929
LPR 4042-PK KANTENSCHUTZ
408787
LPR 4018-NK KANTENSCHUTZ
408788
LPR 4018-PK KANTENSCHUTZ
408789
LPR 4027-NK KANTENSCHUTZ
408790
LPR 4027-PK KANTENSCHUTZ
408791
LPR 4042-NK KANTENSCHUTZ
Material polyethylene nylon 6 polyethylene nylon 6 polyethylene nylon 6
Temperature range 0°C - +65°C -40°C - +65°C 0°C - +65°C -40°C - +65°C 0°C - +65°C -40°C - +65°C
Colour natural natural natural natural natural natural
Widths in mm 4 2,8 2,8 2,8 2,8 4
Height in mm 4,8 4,4 4,4 4,4 4,4 4,8
Type of toothing without toothing without toothing without toothing without toothing without toothing without toothing
B in mm 1,2 0,8 0,8 0,8 0,8 1,2
"GAP" in mm 2,7 0,9 0,9 1,5 1,5 2,7
Panel thickness in mm 2,7 - 4,2 0,9 - 1,8 0,9 - 1,8 1,8 - 2,7 1,8 - 2,7 2,7 - 4,2
