Drawing of cover LPW9
D-Sub connector cover-LPW9

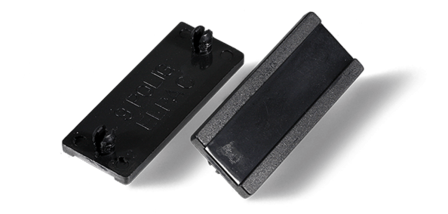

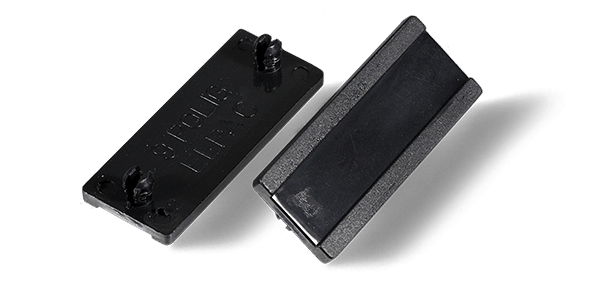

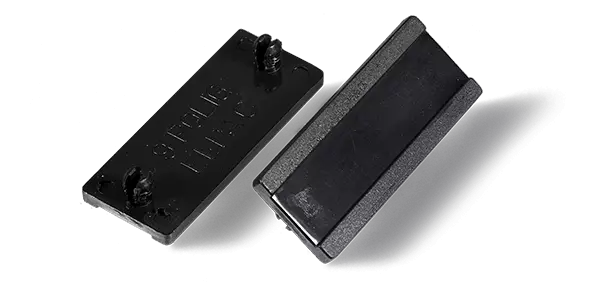

D-Sub cover LPW9

D-Sub miniature cover with snap-in mounting for plugs from 9 to 37 poles

Description
Close
Product description: D-Sub cover LPW9

Product variants

4 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402598
LPW 909
402599
LPW 915
402600
LPW 925
402601
LPW 937
Model D-Sub panel D-Sub panel D-Sub panel D-Sub panel
Material ABS ABS ABS ABS
Colour black black black black
Widths in mm 30,8 39,1 53,0 69,3
Depth in mm 2,0 2,0 2,0 2,0
Height in mm 12,5 12,5 12,5 12,5
Distance between fastening spigots in mm 25,0 33,3 47,0 63,5
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Temperature range -40°C - +90°C -40°C - +90°C -40°C - +90°C -40°C - +90°C
