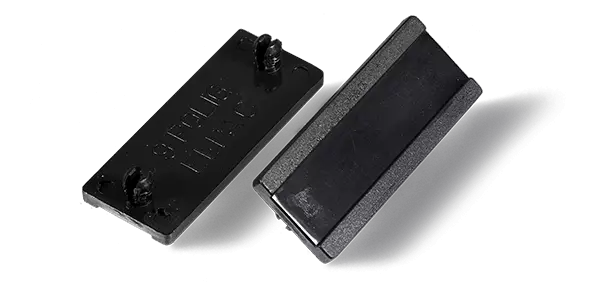

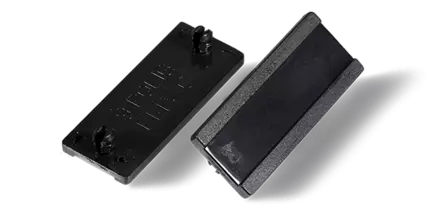

D-Sub cover LPW9
Miniature D-Sub cover with snap-in mounting for plugs from 9 to 37 poles
| 402598 LPW 909 | 402599 LPW 915 | 402600 LPW 925 | 402601 LPW 937 | |
|---|---|---|---|---|
| Model | D-Sub panel | D-Sub panel | D-Sub panel | D-Sub panel |
| Material | ABS | ABS | ABS | ABS |
| Colour | black | black | black | black |
| Widths in mm | 30,8 | 39,1 | 53,0 | 69,3 |
| Depth in mm | 2,0 | 2,0 | 2,0 | 2,0 |
| Height in mm | 12,5 | 12,5 | 12,5 | 12,5 |
| Distance between fastening spigots in mm | 25,0 | 33,3 | 47,0 | 63,5 |
| Fire protection class | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 | UL 94 V-0 |
| Temperature range | -40°C - +90°C | -40°C - +90°C | -40°C - +90°C | -40°C - +90°C |
