Drawing of cover LPR25

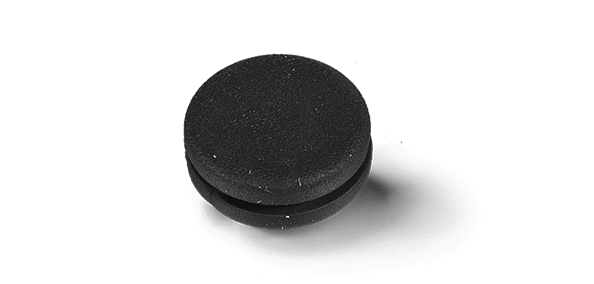

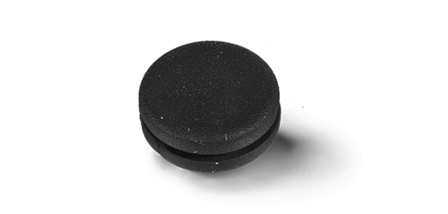

Blind hole cover LPR25

Blind hole cover LPR25

Blind hole cover to cover holes from Ø6.4 up to Ø25.5 mm for panels with 0.8 up to 1.5 mm

Description
Close
Product description: Blind hole cover LPR25

Product variants

8 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
405144
LPR 2500
405145
LPR 2501
405146
LPR 2502
405147
LPR 2503
405148
LPR 2504
405149
LPR 2505 BLINDLOCHABDECKUNG
405150
LPR 2506 BLINDLOCHABDECKUNG
405151
LPR 2507 BLINDLOCHABDECKUNG
Model Blind hole cover Blind hole cover Blind hole cover Blind hole cover Blind hole cover Blind hole cover Blind hole cover Blind hole cover
Material thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE) thermoplastic elastomer (TPE)
Colour black black black black black black black black
Widths in mm 3,6 6,6 6,4 8,0 8 8,0 7,0 8,0
Ø Outer in mm 9,4 12,7 15,7 17,5 19,0 25,5 25,5 30,0
Hole Diameter for mounting in mm 6,4 9,9 12,5 11,0 16,0 22,0 19,0 25,5
Diameter cavity in mm 4,1 6,4 9,5 8,0 11,0 18,4 16,0 20,5
Notch width in mm 0,8 1,5 1,5 1,5 1,5 1,5 1,5 1,5
Fire protection class UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB UL 94 HB
