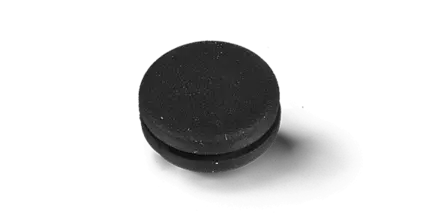

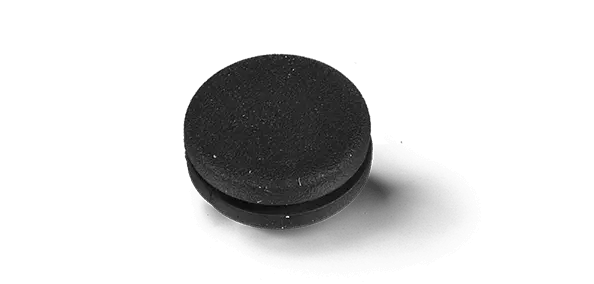

Blind hole cover LPR25
Blind hole cover to cover holes from Ø6.4 up to Ø25.5 mm for panels with 0.8 up to 1.5 mm
Variantes del producto
8 Variante(s) encontrada(s)
No ha encontrado en la lista la varainte del producto deseada, pero está en el plano? Pulse aquí.
Solicitar producto
| 405144 LPR 2500 | 405145 LPR 2501 | 405146 LPR 2502 | 405147 LPR 2503 | 405148 LPR 2504 | 405149 LPR 2505 BLINDLOCHABDECKUNG | 405150 LPR 2506 BLINDLOCHABDECKUNG | 405151 LPR 2507 BLINDLOCHABDECKUNG | |
|---|---|---|---|---|---|---|---|---|
| Model | Blind hole cover | Blind hole cover | Blind hole cover | Blind hole cover | Blind hole cover | Blind hole cover | Blind hole cover | Blind hole cover |
| Material | thermoplastic elastomer (TPE) | thermoplastic elastomer (TPE) | thermoplastic elastomer (TPE) | thermoplastic elastomer (TPE) | thermoplastic elastomer (TPE) | thermoplastic elastomer (TPE) | thermoplastic elastomer (TPE) | thermoplastic elastomer (TPE) |
| Colour | black | black | black | black | black | black | black | black |
| Widths in mm | 3,6 | 6,6 | 6,4 | 8,0 | 8 | 8,0 | 7,0 | 8,0 |
| Ø Outer in mm | 9,4 | 12,7 | 15,7 | 17,5 | 19,0 | 25,5 | 25,5 | 30,0 |
| Hole Diameter for mounting in mm | 6,4 | 9,9 | 12,5 | 11,0 | 16,0 | 22,0 | 19,0 | 25,5 |
| Panel thickness in mm | 0,8 | 1,5 | 1,5 | 1,5 | 1,5 | 1,5 | 1,5 | 1,5 |
| Ø cavity in mm | 4,1 | 6,4 | 9,5 | 8,0 | 11,0 | 18,4 | 16,0 | 20,5 |
| Fire protection class | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB |
