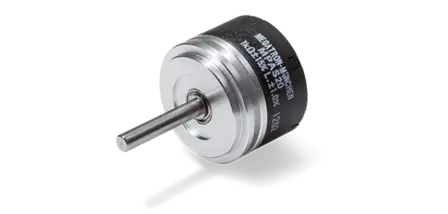

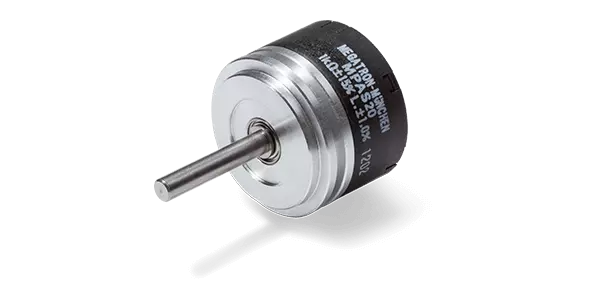

Conductive Plastic Potentiometer MPAS20

Servo flange precision potentiometer with long lifespan in Ø22 mm housing and precision ball bearings

  • High durability and accuracy
  • Servo flange for precise mounting
  • Shaft Ø3.17 mm
  • Axially aligned connections
  • 2 precision ball bearings
Data sheet
Specifications
Sensor technology Conductive Plastic Potentiometer
Effective electrical angle of rotation max. 340°
Functions / Features Without mech. stop
Resolution Nearly infinite
Output signal Analogue
Electrical connection Axial, Solder contacts
Protection class IP40
Mounting Servo flange
Shaft diameter 3.17 mm
Housing diameter 22 mm
Housing depth min. 14.6 mm
Description
The MPAS20 potentiometer series in Ø22 mm housing with precision ... more
Description
Close
Product description: Conductive Plastic Potentiometer MPAS20

The MPAS20 potentiometer series in Ø22 mm housing with precision ball bearings are suitable for applications in which a highly durable sensor is required, that can also be installed precisely.

The precision potentiometer series MPAS20 with ball bearings and conductive plastic technology can also be comfortably used in controlled systems. As passive components, no dead times are caused by signal delays. Furthermore, the signal is continuously available immediately after being switched on. The main application is the actual value recording in closed loop position control circuits. For precise installation, the sensors are equipped with servo flanges (servo clamps are included)

  • High lifespan and accuracy
  • Servo flange for precise installation
  • 2 precision ball bearings

Adaptations / Options:

  • Improved resistance tolerance
  • Front shaft adaptation

We offer many adaptations on request, for example:
Sealed housing case, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances. Furthermore, we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our inquiry form and describe for which application you want to use the product so that we are able to determine the optimal product for your design-in.
