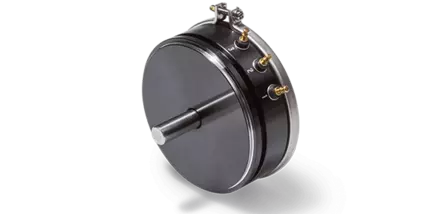

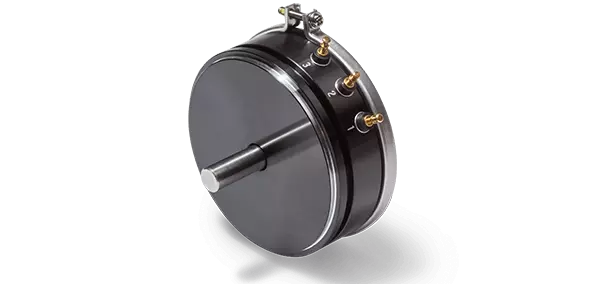

Conductive Plastic Potentiometer MCP50

High resolution precision potentiometer with excellent linearity and lifespan, very high resistance value and high electrically effective rotation angle in Ø51 mm housing

  • Highest lifetime
  • Achieves the highest linearity requirements with up to ±0.05%
  • Extremely precise sensor
  • High electrically effective angle of rotation 350° ±5°
  • Servo flange for precise mounting
  • 2 precision ball bearings in robust metal housing
  • Applicable in wide temperature range
  • Very high max. resistance value - power saving in applications
Data sheet
Specifications
Sensor technology Conductive Plastic Potentiometer
Effective electrical angle of rotation max. 350°
Functions / Features Opt. multiganged/ tandem, Metal housing, Without mech. stop, Opt. rear shaft
Resolution Nearly infinite
Output signal Analogue
Electrical connection Solder contacts, Radial
Protection class IP40
Mounting Servo flange
Shaft diameter 6.00 mm
Housing diameter 51 mm
Housing depth min. 18 mm
Description
The MCP50 potentiometers with precision ball bearings and servo ... more
Description
Close
Product description: Conductive Plastic Potentiometer MCP50

The MCP50 potentiometers with precision ball bearings and servo flange are suitable for applications where a very long life with extremely high linearity, high resistance value at high load capacity and precisely mountable sensor is important.

The precision potentiometers of the MCP50 series are designed for high demands on accuracy and reliability. They have outstanding linearity and excellent life expectancy. The sensor is available in a very high-resistance version for very energy-saving requirements. The potentiometer is equipped with a servo flange for precise mounting. In closed loop controlled systems, the conductive plastic potentiometers can be used particularly advantageously. As passive components, they do not cause any dead times due to signal propagation and the signal is infinitely available.

  • Very long lifespan
  • Very precise sensor
  • Servo flange for precise mounting
  • 2 Precision ball bearings
  • Robust metal housing
  • High max. resistance value
  • Power saving in applications
  • Very high electrically effective rotation angle 350° ±5°

Options:

  • Improved Linearity
  • Rear shaft
  • Center tap
  • Front shaft adjustment
  • Tandem versions

We offer many adaptations on request: Multi ganged potentiometers, sealed housing case, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances. Furthermore, we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our request form and describe your application, so we can determine the optimal product for your design-in.
