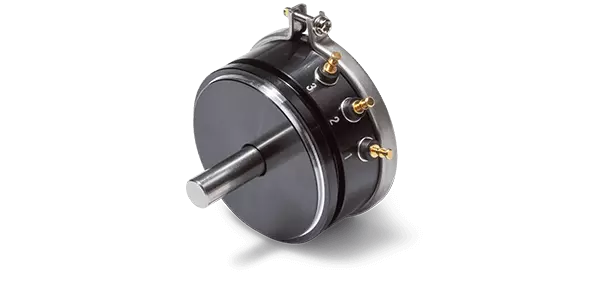

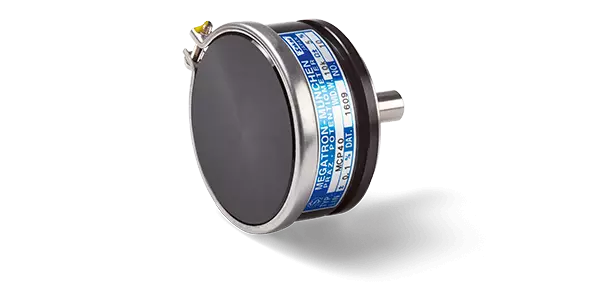

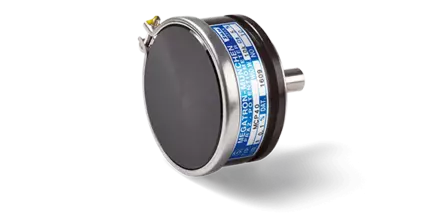

Conductive Plastic Potentiometer MCP40

High-resolution precision potentiometer with servo flange, excellent linearity and lifespan and high resistance value in Ø36.5 mm metal housing

  • Very long lifespan
  • Very precise sensor
  • High max. resistance value - Power-saving in applications
  • Servo flange for precise mounting
  • 2 precision ball bearings
  • Can be used in a wide temperature range
  • Optional tandem version
Data sheet
Specifications
Resolution Nearly infinite
Functions / Features Without mech. stop, Metal housing, Opt. multiganged/ tandem, Opt. rear shaft
Output signal Analogue
Protection class IP40
Sensor technology Conductive Plastic Potentiometer
Shaft diameter 6.00 mm
Housing diameter 37 mm
Mounting Servo flange
Electrical connection Radial, Solder contacts
Effective electrical angle of rotation max. 340°
Housing depth min. 18 mm
Description
The MCP40 potentiometers with precision ball bearings and servo ... more
Description
Close
Product description: Conductive Plastic Potentiometer MCP40

The MCP40 potentiometers with precision ball bearings and servo flange are suitable for applications where a very long life with very high linearity and precisely mountable sensor is important.

The precision potentiometers of the MCP40 series are designed for high demands on accuracy and reliability. They have outstanding linearity and excellent life expectancy. The sensor is available in a high-resistance version for power-saving requirements. The potentiometer is equipped with a servo flange for precise mounting. In closed loop controlled systems, the conductive plastic potentiometers can be used particularly advantageously. As passive components, they do not cause any dead times due to signal propagation and the signal is infinitely available.

  • Very long lifespan
  • Very precise sensor
  • Servo flange for precise mounting
  • 2 Precision ball bearings
  • Robust metal housing
  • Power saving in applications

Options:

  • Rear shaft
  • Center tap
  • Front shaft adjustment
  • Tandem versions

We offer many adaptations on request: Multi ganged potentiometers, sealed housing case, special electrical and mechanical angles of rotation, and special resistance and linearity tolerances. Furthermore, we can mount gear wheels or attach cable assemblies with or without connectors and much more. Please use our request form and describe your application, so we can determine the optimal product for your design-in.
