Cable tie SST

Cable tie SST

Cable tie with bundle diameter from 1.5 to 203 mm and tensile strength up to 534 N

Description
Close

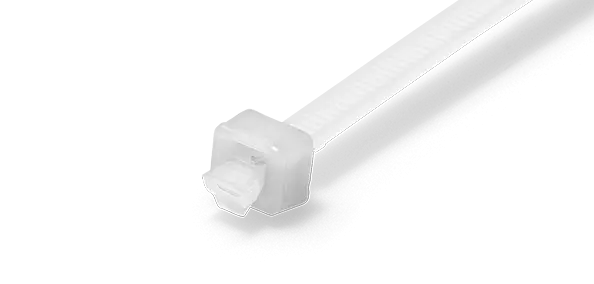

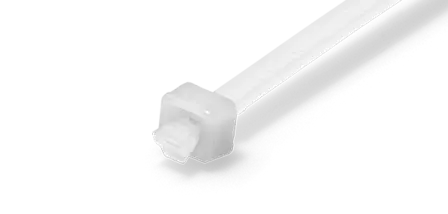

Product description: Cable tie SST

Product variants

10 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
400009
KABELBINDER SST 1M-M 1000ST
400015
SST 1.5M-M KABELBINDER, NATUR
400019
KABELBINDER SST 1.5I-M 1000ST
400022
KABELBINDER SST 1.5S-M 1000ST
400025
KABELBINDER SST 2I-M 1000ST
400029
KABELBINDER SST 2S-M 1000ST
400032
SST 2H-D KABELBINDER, NATUR
400037
KABELBINDER SST 3I-M 1000ST
400040
KABELBINDER SST 3S-M 1000ST
400046
KABELBINDER SST 4S-M 1000ST
Material polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6 polyamide 6.6
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Temperature range -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C '-60°C - +85°C -60°C - +85°C -60°C - +85°C -60°C - +85°C
Colour natural natural natural natural natural natural natural natural natural natural
Cable ties characteristics Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends Cable tie standard ends
Length in mm 102 140 137 146 206 172 203 279 279 381
Ø Bundle/ Cable in mm 1,5 - 20 1,5 - 20 1,5 - 32 1,5 - 32 1,5 - 51 1,5 - 45 1,5 - 51 1,5 - 76 1,5 - 76 1,5 - 102
Tensile strength in kg 8,16 8,16 18,14 22,68 18,14 22,68 54,43 18,14 22,68 22,68
Widths in mm 2,4 2,4 3,4 4,6 3,4 4,6 7,6 3,4 4,6 4,6
Lock type locking removable locking locking locking locking removable locking locking locking

Price / availability enquiry
