Drawing cable clamp ESS1000

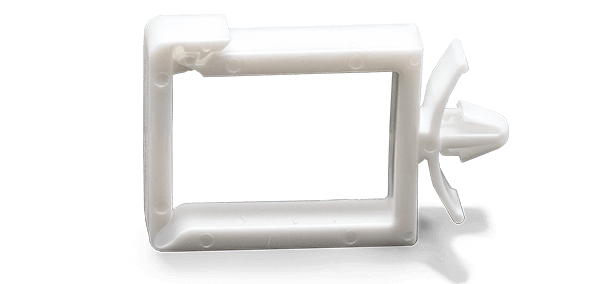

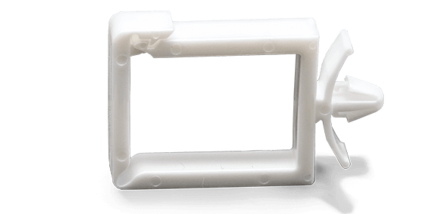

Cable clamp ESS1000

Cable clip ESS1000

Cable clip for snap-on mounting. With snap-in mechanism for cable bundles in 5 different sizes

Description
Close
Product description: Cable clip ESS1000

Product variants

3 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
407861
ESS 1001 LEITUNGSHALTER
407862
ESS 1002 LEITUNGSHALTER
407863
ESS 1003 LEITUNGSHALTER
Assembly type plug in mounting plug in mounting plug in mounting
Material nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0
Colour white white white
Ø Mounting hole (B "bottom") in mm 4,8 4,8 4,8
Panel thickness in mm 0,6 - 2,0 0,6 - 2,0 0,6 - 2,0
Height in mm 18,8 24,8 32,1
Ø Bundle/ Cable in mm 11,1 16,4 22,5
Type of cable round cable - round cable
Component width in mm 5,0 5,5 6,0
Component length in mm 17,3 19,0 24,5
