Drawing cable clamp KKKDE

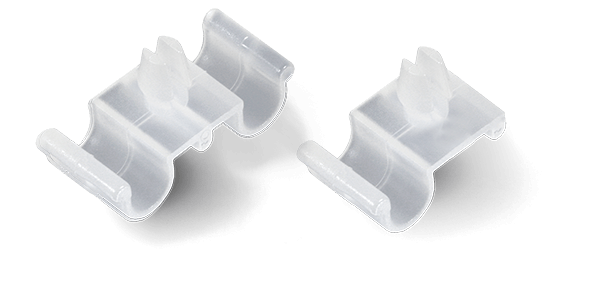

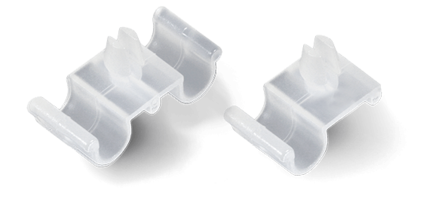

Cable clamp KKKDE

Cable clamp KKKDE

Cable clamp for snap-in mounting with one or two cable holders for cable bundles with max. Ø3.2 to Ø6.4 mm

Description
Close
Product description: Cable clamp KKKDE

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
400893
KKK E3 KUNSTSTOFFKABEL-CLIP
400894
KKK E4 KUNSTSTOFFKABEL-CLIP
400895
KKK E6 KUNSTSTOFFKABEL-CLIP
400896
KKK D3 KUNSTSTOFFKABEL-CLIP
400897
KKK D4 KUNSTSTOFFKABEL-CLIP
400898
KKK D6 KUNSTSTOFFKABEL-CLIP
Assembly type plug in mounting plug in mounting plug in mounting plug in mounting plug in mounting plug in mounting
Type Type 1 Type 1 Type 1 Type 2 Type 2 Type 2
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 3,18 3,18 3,18 3,18 3,18 3,18
Material thickness in mm 1,57 1,57 1,57 1,6 1,6 1,6
Height in mm 4,3 6,1 7,6 4,3 6,1 7,6
Blocking mechanism clamping clamping clamping clamping clamping clamping
Type of cable round cable round cable round cable round cable round cable round cable
Component width in mm 7,6 7,6 7,6 7,6 7,6 7,6
Component length in mm 12,4 14,2 15,7 19 22,6 25,9
Ø Inner in mm 3,2 4,8 6,4 3,2 4,8 6,4
