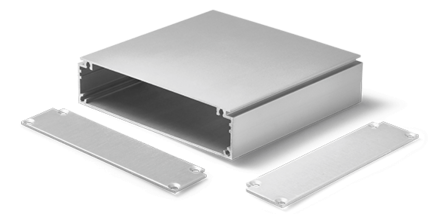

Aluminium housing MINKAP G
Aluminium small housing MINKAP G for euroboards with VG ledge as insert in 3U/19"
- For single euroboards with 100 mm width
- Standard size 100 x 22.4 x 160 mm (W x H x L)
- End plates for VG ledge with C096 plug connector according to IEC 60603-2
- For the insertion of 3HE/19"card carriers
|Width (outer)||103,2 mm|
|Height (outer)||25,2 mm|
|Standard lengths||160 mm, 166,5 mm|
|Material / Colour||Aluminium natural anodised|
MINKAP G series of aluminium miniature housings are designed for use of single euroboards (width of 100 mm) with 1.6 mm material thickness. The housing is equipped with the two outer grooves for the insertion of 3U/19 "card carriers. The aluminium housing has a standard length of 160 mm inside dimensions (customer-specific lengths up to a maximum of 3,000 mm) and an internal height of 22.4 mm. End plate variants with or without a breakthrough in the lower or upper groove are available. The latter are manufactured for VG ledge with C096 plug-in according to IEC 60603-2. Screws are included by ordering plates. The aluminium housings are available in anodized aluminium (optional black anodized).
Note: The aluminium housing MINKAP G can be integrated into the MINKAP K housing. The MINKAP K has 4 outer grooves for mounting (see series MINKAP K).
For serial production, you get many other customer-specific solutions, such as:
Processing of the housings such as drilling, punching, milling etc. as well as printing, customer-specific colours according to customer requirements. Customized processing of end plates, other thicknesses and materials. Chromate the bare housing and plates and more.
