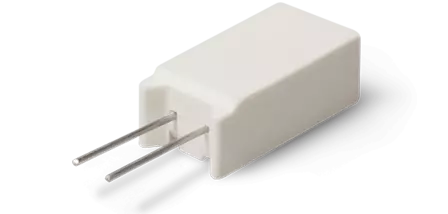

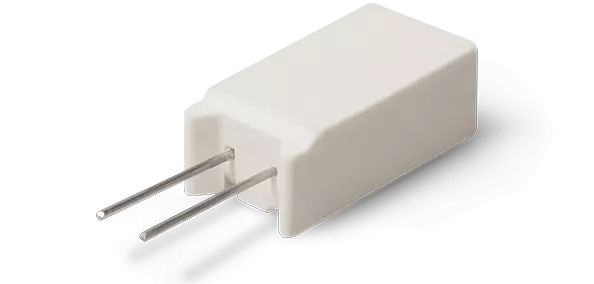

Power Resistor MCV - wirewound

10 watt @75 °C power resistor in a ceramic flameproof case with very high temperature range -55 °C...+275 °C - no heatsink required!

  • Flameproof - wirewound resistor cemented in ceramic
  • Power rating up to 10 watts @75 °C
  • No heat sink required
  • Resistance values of 0.01 Ω…90 kΩ
  • Resistance tolerance up to ±0.01%
Data sheet
Compare
Remember
Specifications
Technology Wirewound
Resistance Tolerance ±0,01%..±10%
Resistance Range 0,01Ω..91kΩ
Power Rating ≤ 10W @75°C
Temperature Coefficient ±20..±90 ppm/°C
Design Radial leaded
Max. Working Temperature +275 °C
Min. Working Temperature -55 °C
Description
MCV power resistors with radial leads are designed to maintain a ... more
Description
Close
Product description: Power Resistor MCV - wirewound

MCV power resistors with radial leads are designed to maintain a distance between the mounting surface (PCB) and the resistor. This prevents unwanted heat transfer between the resistor and other surfaces or components. Unlike other power resistors, these resistors do not require a heat sink and are flame retardant as they are cemented into a ceramic body. They can withstand loads of up to 10 watts at 75 °C and have resistance values of 0.01 Ω...90 kΩ with a resistance tolerance of up to ±0.01%. MCV resistors can be used wherever high temperatures occur. Typical applications include power and control circuits for electrical drives or temperature control.

  • Temperature coefficient ±20ppm/°C
  • Non-inductive windings (option)
