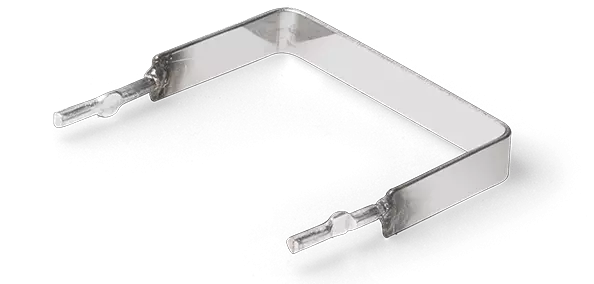

Shunt Resistor MST - bare metal

Bare metal shunt resistor with power rating up to 5 watts @85°C, tolerances of ±1%..±5% for resistance values of 0,005Ω..0,1Ω


Technology: Bare Metal
Design: Radial leaded
Power Rating: ≤ 5W @85°C
Resistance Range: 0,005..0,1Ω
Resistance Tolerance: ±1%..±5%
Temperature Coefficient: 20 ppm/°C
Max. Working Temperature: +270°C
Min. Working Temperature: -55°C

MST current sense resistors are accurate components for current sensing circuit applications. They have low inductance (<10nH), power rating of up to 5 watts @85°C and a TCR value of ±20ppm/°C. With very low resistance values of up to 0,005Ω, the shunts are suitable for measurement technology and are also used in power electronics for current control. Typical applications are circuits for intelligent charging management systems, industrial networks, automotive applications and communications.
