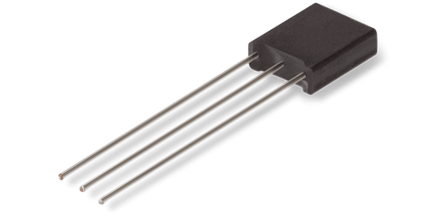

Voltage Divider MSM - metal foil Resistor

Very temperature-stable 2-fold voltage divider up to +125 °C with max. 30 kΩ resistance in moisture-resistant epoxy housing

  • High load capability up to +125 °C
  • Resistance values from 50 Ω…30 kΩ
  • TCR from ±2.5 ppm/°C absolute
  • Resistance tolerance from ±0.02% absolute, matching from ±0.01%
  • Low noise with good long-term stability
  • Solid and moisture resistant epoxy housing
Data sheet
Compare
Remember
Specifications
Technology Metal Foil
Resistance Tolerance ±0,02%..±0,1% absolut
Resistance Range 50Ω..30kΩ
Power Rating ≤ 0,3W @125°C
Temperature Coefficient ±2,5..±5 ppm/°C absolut
Design Radial leaded
Max. Working Temperature +150 °C
Min. Working Temperature -55 °C
Description
MSM voltage dividers are the best choice when high stability, ... more
Description
Close
Product description: Voltage Divider MSM - metal foil Resistor

MSM voltage dividers are the best choice when high stability, precision and a rouged design are the most important criteria alongside all other electrical specifications. The resistors are temperature stable up to 0.3W @125 °C with resistance values of 50 Ω...30 kΩ. They have low noise and good long term stability. Typical applications include laboratory, medical, instrumentation, telecommunications, electron beam and downhole applications.
