Drawing twist tie LPT13
Twist tie LPT13

Twist tie LPT13

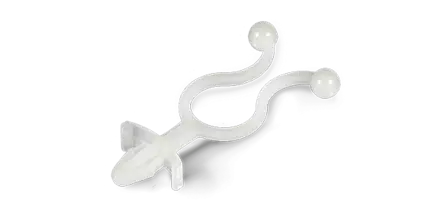

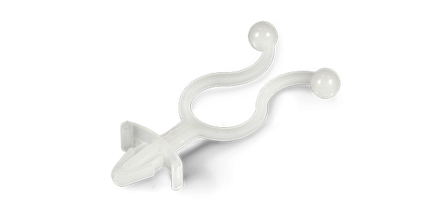

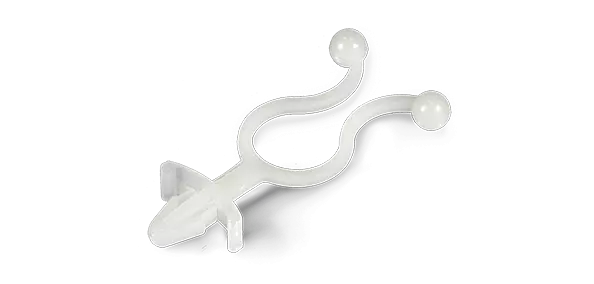

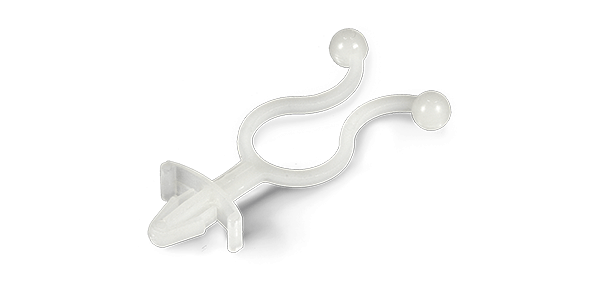

Twister with snap-on mounting. Functions as a spacer for cables with heights from 2.4 to 60.4 mm. For cable bundles with Ø4.4 up to Ø35 mm

Description
Close
Product description: Twist tie LPT13

Product variants

11 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
408352
LPT 1320 RUNDKABELHALTER
408353
LPT 1321 RUNDKABELHALTER
408354
LPT 1322 RUNDKABELHALTER
408355
LPT 1323 RUNDKABELHALTER
408356
LPT 1324 RUNDKABELHALTER
408357
LPT 1325 RUNDKABELHALTER
408358
LPT 1326 RUNDKABELHALTER
408359
LPT 1327 RUNDKABELHALTER
408360
LPT 1328 RUNDKABELHALTER
408361
LPT 1329 RUNDKABELHALTER
411982
LPT 1330 RUNDKABELHALTER
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural natural natural natural natural natural
Height in mm 81,1 22,5 33,2 30,0 42,5 48,6 37,1 32,9 34,3 46,6 66,4
Ø Bundle/ Cable in mm 4,4 7,0 6,8 9,5 9,7 10,2 10,2 13,0 14,0 22,0 16,5
Length B in mm 60,4 3,5 10,5 3,0 15,5 21,1 10,1 2,4 3,5 3,0 30,0
