Thumb wheel TRY13

Small thumb wheel joysticks with Hall sensors

Ergonomic thumb wheel / single axis joystick
Up to 5 million cycles
Contactless, wear-free Hall sensor joysticks
With spring return
Sensitive response to user operation

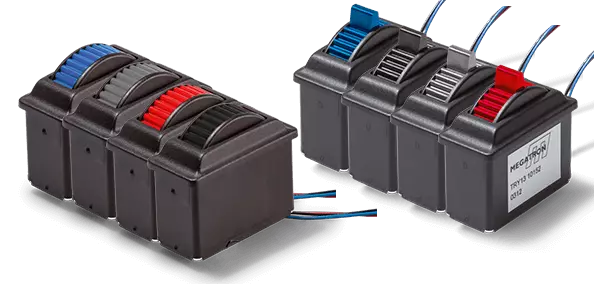

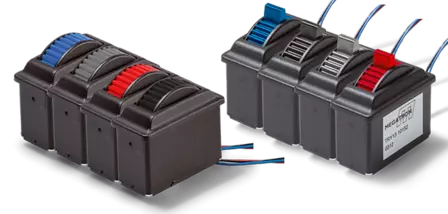

Wheel available in colours red, grey, black or blue

Specifications

Size	Thumb Joystick
Technology	Hall Effect
Axes	1
Return Mechanism	Spring Return
Output interface	Analogue voltage output
Housing depth under panel	≤ 25 mm
Sealing above panel	IP67 (only valid for electronics)
Limiter plate	Slotted y direction (1 axis), Slotted x direction (1 axis)

The TRY13 series is a minimum width, low profile thumb wheel ... more

Product description: Thumb wheel TRY13

The TRY13 series is a minimum width, low profile thumb wheel that provides smooth, precise control in a single axis. It uses Hall effect technology for long life with proportional outputs, ensuring stable output signals over a long life. The design is optimized for mounting in operator consoles and large joysticks. Configuration options include output voltage range, thumb wheel colour, and termination (pitch connector or mating harness).
