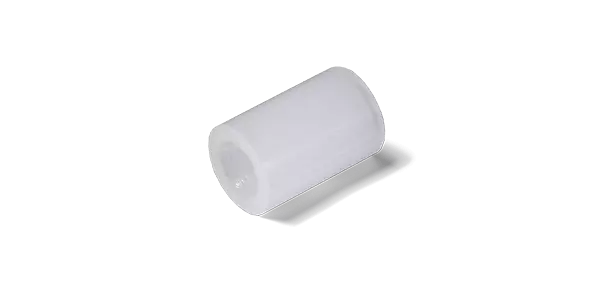

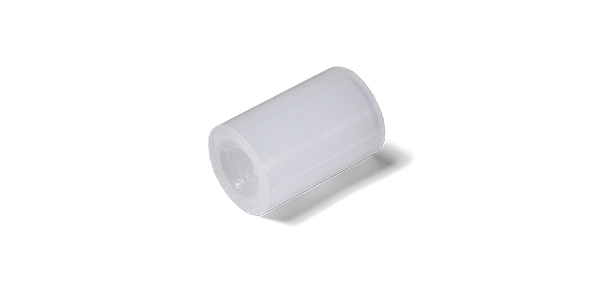

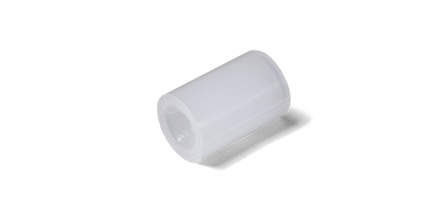

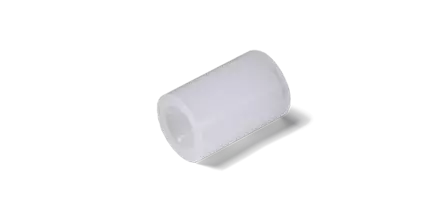

Plastic PCB standoff PEGNG

Miniature round standoff with M2.5 up to M4 female thread for distance length 3 to 20 mm

Description
Close
Product description: Plastic PCB standoff PEGNG

Product variants

36 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
404713
PEG NG-M3-3MM
404714
PEG NG-M3-4MM
404715
PEG NG-M3-5MM
404716
PEG NG-M3-6MM
404717
PEG NG-M3-7MM
404718
PEG NG-M3-8MM
404719
PEG NG-M3-9MM
404720
PEG NG-M3-10MM
404721
PEG NG-M3-11MM
404722
PEG NG-M3-12MM
404723
PEG NG-M3-13MM
404724
PEG NG-M3-14MM
404725
PEG NG-M3-15MM
404726
PEG NG-M3-16MM
404727
PEG NG-M3-17MM
404728
PEG NG-M3-18MM
404729
PEG NG-M3-19MM
404730
PEG NG-M3-20MM
405031
PEG NG-M4-3MM
405032
PEG NG-M4-4MM
405033
PEG NG-M4-5MM
405034
PEG NG-M4-6MM
405035
PEG NG-M4-7MM
405036
PEG NG-M4-8MM
405037
PEG NG-M4-9MM
405038
PEG NG-M4-10MM
405039
PEG NG-M4-11MM
405040
PEG NG-M4-12MM
405041
PEG NG-M4-13MM
405042
PEG NG-M4-14MM
405043
PEG NG-M4-15MM
405044
PEG NG-M4-16MM
405045
PEG NG-M4-17MM
405046
PEG NG-M4-18MM
405047
PEG NG-M4-19MM
405048
PEG NG-M4-20MM
Distance height in mm 3,0 4,0 5,0 3,0 7,0 8,0 9,0 10,0 11,0 12,0 13,0 14,0 15,0 16,0 17,0 18,0 19,0 20,0 3,0 4,0 5,0 6,0 7,0 8,0 9,0 10,0 11,0 12,0 13,0 14,0 15,0 16,0 17,0 18,0 19,0 20,0
Model Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female)
Ø Female thread in mm M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4
Outer Diameter body in mm 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0
Material nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6
Material of thread nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6 nylon 6
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Temperature range -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C
Colour natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural
