Drawing standoff LPR895
Standoff LPR895

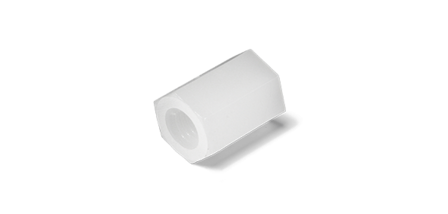

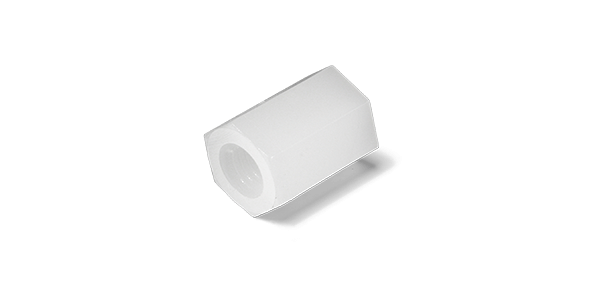

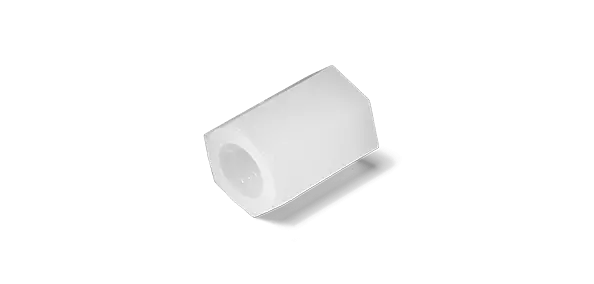

Plastic PCB standoff LPR895

Hexagonal standoff with M3 female thread for distance length 6.35 to 30 mm

Description
Close
Product description: Plastic PCB standoff LPR895

Product variants

7 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402565
LPR 8951
402566
LPR 8952
402567
LPR 8953
402568
LPR 8955
402569
LPR 8957
402570
LPR 8959
405383
LPR 8956
Distance height in mm 8,0 10,5 12,8 16,0 20,1 24,0 18,2
Model Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female)
Ø Female thread in mm M3 M3 M3 M3 M3 M3 M3
Width across flats 5,5 5,5 5,5 5,5 5,5 5,5 5,5
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Material of thread nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Colour natural natural natural natural natural natural natural

Price / availability enquiry
