Drawing standoff PEGR
Standoff PEGR

PCB standoff PEGR

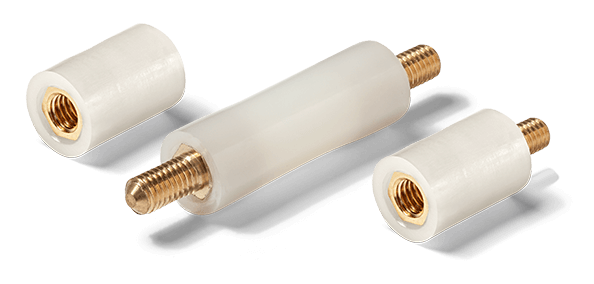

Round standoff with M3 up to M5 metal threads type A, B and C for distance length 10 to 105 mm

Description
Close
Product description: PCB standoff PEGR

Product variants

78 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
402427
PEG R-M3-10-A
402428
PEG R-M3-13-A
402429
PEG R-M3-19-A
402430
PEG R-M3-25-A
402431
PEG R-M4-16-A
402432
PEG R-M4-25-A
402433
PEG R-M4-32-A
402434
PEG R-M4-38-A
402435
PEG R-M4-45-A
402510
PEG R-M3-10-B
402511
PEG R-M3-13-B
402512
PEG R-M3-19-B
402513
PEG R-M3-25-B
402514
PEG R-M4-16-B
402515
PEG R-M4-25-B
402516
PEG R-M4-32-B
402517
PEG R-M4-38-B
402518
PEG R-M4-45-B
402519
PEG R-M3-10-C
402520
PEG R-M3-13-C
402521
PEG R-M3-19-C
402522
PEG R-M3-25-C
402523
PEG R-M4-16-C
402524
PEG R-M4-25-C
402525
PEG R-M4-32-C
402526
PEG R-M4-38-C
402527
PEG R-M4-45-C
404120
PEG R-M3-15-A
404121
PEG R-M3-15-B
404122
PEG R-M3-15-C
404123
PEG R-M3-20-A
404124
PEG R-M3-20-B
404125
PEG R-M3-20-C
404126
PEG R-M3-30-A
404127
PEG R-M3-30-B
404128
PEG R-M3-30-C
404129
PEG R-M3-35-A
404130
PEG R-M3-35-B
404131
PEG R-M3-35-C
404132
PEG R-M3-40-A
404133
PEG R-M3-40-B
404134
PEG R-M3-40-C
404135
PEG R-M3-45-A
404136
PEG R-M3-45-B
404137
PEG R-M3-45-C
404138
PEG R-M3-50-A
404139
PEG R-M3-50-B
404140
PEG R-M3-50-C
404141
PEG R-M3-75-A
404142
PEG R-M3-75-B
404143
PEG R-M3-75-C
404147
PEG R-M4-15-A
404148
PEG R-M4-15-B
404149
PEG R-M4-15-C
404150
PEG R-M4-35-A
404151
PEG R-M4-35-B
404152
PEG R-M4-35-C
404153
PEG R-M4-55-A
404154
PEG R-M4-55-B
404155
PEG R-M4-55-C
404156
PEG R-M4-75-A
404157
PEG R-M4-75-B
404158
PEG R-M4-75-C
404260
PEG R-M3-48-B
405423
PEG R-M4-12,7-B
405601
PEG R-M4-40-C
405861
PEG R-M4-12,7-C
406439
PEG R-M3-12-B
406558
PEG R-M4-25-B-PTFE
406559
PEG R-M4-25-C-PTFE
406686
PEG R-M4-20-B
407366
PEG R-M4-31-B
407569
PEG R-M4-65-C
409271
PEG R-M3-16-B
409272
PEG R-M3-16-C
410575
PEG R-M3-16-A
410929
PEG R-M4-85-B
412612
PEG R-M4-90-C
Distance height in mm 10,0 13,0 19,0 25,0 16,0 25,0 32,0 38,0 45,0 10,0 13,0 19,0 25,0 16,0 25,0 32,0 38,0 45,0 10,0 13,0 19,0 25,0 16,0 25,0 32,0 38,0 45,0 15,0 15,0 15,0 20,0 20,0 20,0 30,0 30,0 30,0 35,0 35,0 35,0 40,0 40,0 40,0 45,0 45,0 45,0 50,0 50,0 50,0 75,0 75,0 75,0 15,0 15,0 15,0 35,0 35,0 35,0 55,0 55,0 55,0 75,0 75,0 75,0 48,0 12,7 40,0 12,7 12,0 25,0 25,0 20,0 31,0 65,0 16,0 16,0 16,0 85,0 90,0
Model Type A (male/ male) Type A (male/ male) Type A (male/ male) Type A (male/ male) Type A (male/ male) Type A (male/ male) Type A (male/ male) Type A (male/ male) Type A (male/ male) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type B (male/ female) Type C (female/ female) Type A (male/ male) Type B (male/ female) Type C (female/ female)
Ø Female thread in mm - - - - - - - - - M3 M3 M3 M3 M4 M4 M4 M4 M4 M3 M3 M3 M3 M4 M4 M4 M4 M4 - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M4 M4 - M4 M4 - M4 M4 - M4 M4 M3 M4 M4 M4 M3 M4 M4 M4 M4 M4 M3 M3 - M4 M4
Thread depth (inside) in mm - - - - - - - - - 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 - 6,0 6,0
Ø Male thread in mm M3 M3 M3 M3 M4 M4 M4 M4 M4 M3 M3 M3 M3 M4 M4 M4 M4 M4 - - - - - - - - - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M3 M3 - M4 M4 - M4 M4 - M4 M4 - M4 M4 - M3 M4 - - M3 M4 - M4 M4 - M3 - M3 M4 -
Thread length (outside) in mm 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 6,0 - - - - - - - - - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - 6,0 6,0 - - 6,0 6,0 - 6,0 6,0 - 6,0 - 6,0 6,0 -
Outer Diameter body in mm 6,5 6,5 6,5 6,5 8,0 8,0 8,0 8,0 8,0 6,5 6,5 6,5 6,5 8,0 8,0 8,0 8,0 8,0 6,5 6,5 6,5 6,5 8,0 8,0 8,0 8,0 8,0 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 6,5 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 6,5 8,0 8,0 8,0 6,5 9,5 9,5 8,0 8,0 8,0 6,5 6,5 6,5 8,0 -
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 polytetrafluorethylene polytetrafluorethylene nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Material of thread brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass
Fire protection class UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0 UL 94 V-0
Temperature range -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C -30°C - +85°C
Colour natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural natural
