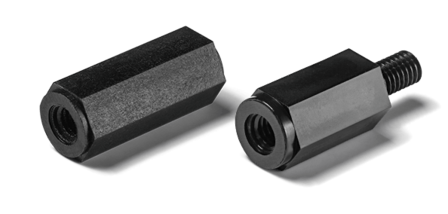

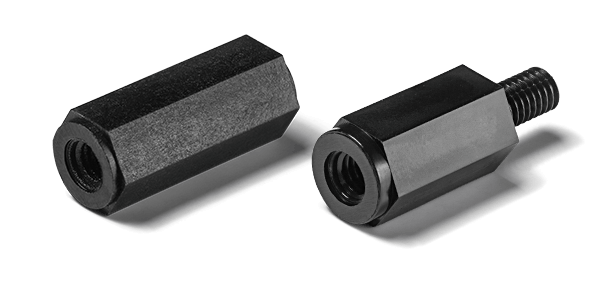

Nylon PCB standoff PEGKS
Hexagonal standoff with M3 or M4 threads type B or C for distance length 5 to 70 mm
Product variants
35 variant(s) found
Can't find the product you want in the list? It is in the drawing! Just click here:
Product enquiry
| 406080 PEG KS-M4-10-B SW | 407396 PEG KS-M4-22-C SW | 407397 PEG KS-M4-30-C SW | 407398 PEG KS-M4-49-C SW | 407937 PEG KS-M3-16-C SW | 407946 PEG KS-M4-46-B SW | 407947 PEG KS-M4-18-C SW | 407968 PEG KS-M3-13-C SW | 408035 PEG KS-M4-15-B SW | 408142 PEG KS-M4-15-C SW | 408143 PEG KS-M4-20-C SW | 408941 PEG KS-M3-6-C SW | 408942 PEG KS-M3-12-C SW | 409134 PEG KS-M3-37-C SW | 409137 PEG KS-M4-18-B SW | 409148 PEG KS-M3-40-C SW | 409212 PEG KS-M3-48-C SW | 409230 PEG KS-M4-50-B SW | 409231 PEG KS-M4-50-C SW | 409308 PEG KS-M3-20-C SW | 409685 PEG KS-M3-10-B SW | 409745 PEG KS-M3-10-C SW | 409746 PEG KS-M4-10-C SW | 409831 PEG KS-M3-15-C SW | 409832 PEG KS-M3-35-C SW | 409846 PEG KS-M3-39-C SW | 409928 PEG KS-M3-9-C SW | 410618 PEG KS-M3-30-C SW | 411090 PEG KS-M3-50-C (GLASFASERVERSTÄRKT) | 411594 PEG KS-M4-35-C SW | 411965 PEG KR-M4-10-B SW | 412495 PEG KS-M4-68-C SW | 412601 PEG KS-M3-5-B SW | 412602 PEG KS-M4-25-C SW | 413042 PEG KS-M3-5-C SW | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Distance height in mm | 10,0 | 22,0 | 30,0 | 49,0 | 16,0 | 46,0 | 18,0 | 13,0 | 15,0 | 15,0 | 20,0 | 6,0 | 12,0 | 37,0 | 18,0 | 40,0 | 48,0 | 50,0 | 50,0 | 20,0 | 10,0 | 10,0 | 10,0 | 15,0 | 35,0 | 39,0 | 9,0 | 30,0 | 50,0 | 35,0 | 10,0 | 68,0 | 5,0 | 25,0 | 5,0 |
| Model | Type B (male/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type B (male/ female) | Type C (female/ female) | Type C (female/ female) | Type B (male/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type B (male/ female) | Type C (female/ female) | Type C (female/ female) | Type B (male/ female) | Type C (female/ female) | Type C (female/ female) | Type B (male/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type C (female/ female) | Type B (male/ female) | Type C (female/ female) | Type B (male/ female) | Type C (female/ female) | Type C (female/ female) |
| Ø Female thread in mm | M4 | M4 | M4 | M4 | M3 | M4 | M4 | M3 | M4 | M4 | M4 | M3 | M3 | M3 | M4 | M3 | M3 | M4 | M4 | M3 | M3 | M3 | M4 | M3 | M3 | M3 | M3 | M3 | M3 | M4 | M4 | M4 | M3 | M4 | M3 |
| Thread depth (inside) in mm | 10,0 | 10,0 | 10,0 | 10,0 | 8,0 | 10,0 | 10,0 | 8,0 | 10,0 | 10,0 | 10,0 | 8,0 | 8,0 | 10,0 | 10,0 | 10,0 | 10,0 | 10,0 | 10,0 | 10,0 | 8,0 | 10,0 | 10,0 | 15,0 | 10,0 | 10,0 | 9,0 | 10,0 | 10,0 | 10,0 | 7,0 | 10,0 | 3,0 | 10,0 | 5,0 |
| Ø Male thread in mm | M4 | - | - | - | - | M4 | - | - | M4 | - | - | - | - | - | M4 | - | - | M4 | - | - | M3 | - | - | - | - | - | - | - | - | - | M4 | - | M3 | - | - |
| Thread length (outside) in mm | 8,0 | - | - | - | - | 8,0 | - | - | 8,0 | - | - | - | - | - | 8,0 | - | - | 8,0 | - | - | 8,0 | - | - | - | - | - | - | - | - | - | 8,0 | - | 8,0 | - | - |
| Width across flats | 8 | 8 | 8 | 8 | 6 | 8 | 8 | 6 | 8 | 8 | 8 | 6 | 6 | 6 | 8 | 6 | 6 | 8 | 8 | 6 | 6 | 6 | 8 | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 6 | 8 | 6 |
| Material | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide | polyamide |
| Fire protection class | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB | UL 94 HB |
| Temperature range | -40°C - +90°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +90°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +105°C | -40°C - +110°C | -40°C - +110°C | -40°C - +90°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | - | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C | -40°C - +110°C |
| Colour | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | black | brass-coloured | black | black | black | black | black | black |
