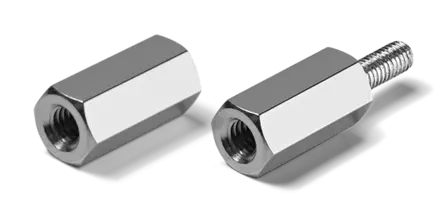

Drawing standoff PEGMS

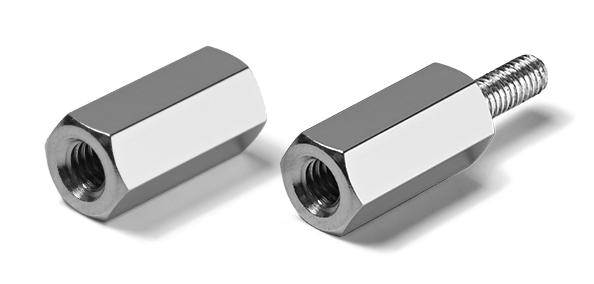

Standoff PEGMS

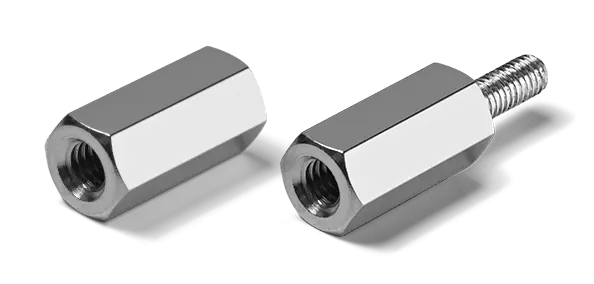

Brass PCB standoff PEGMS

Hexagonal standoff with M2.5 up to M4 threads for distance length 5 to 100 mm in type C and B. Type B with thread undercut DIN76-B

Description
Close
Product description: Brass PCB standoff PEGMS

Product variants

84 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
404608
PEG MS-M3-5-B (6 MM AUßENGEW.)
404609
PEG MS-M3-10-B (8MM AUßENGEW.)
404610
PEG MS-M3-15-B (6MM AUßENGEW.)
404611
PEG MS-M3-20-B (8MM AUßENGEW.)
404612
PEG MS-M3-25-B (6MM AUßENGEW.)
404613
PEG MS-M3-30-B (8MM AUßENGEW.)
404614
PEG MS-M3-35-B (8MM AUßENGEW.)
404615
PEG MS-M3-40-B (8MM AUßENGEW.)
404616
PEG MS-M3-45-B (8MM AUßENGEW.)
404617
PEG MS-M3-50-B (6MM AUßENGEW.)
404618
PEG MS-M3-20-C
404619
PEG MS-M3-25-C
404620
PEG MS-M3-30-C
404621
PEG MS-M3-35-C
404622
PEG MS-M3-40-C
404623
PEG MS-M3-45-C
404624
PEG MS-M3-50-C
404625
PEG MS-M4-5-B
404626
PEG MS-M4-10-B
404627
PEG MS-M4-15-B
404628
PEG MS-M4-20-B
404629
PEG MS-M4-25-B
404630
PEG MS-M4-30-B
404631
PEG MS-M4-35-B
404632
PEG MS-M4-40-B
404633
PEG MS-M4-45-B
404634
PEG MS-M4-50-B
404635
PEG MS-M4-20-C
404636
PEG MS-M4-25-C
404637
PEG MS-M4-30-C
404638
PEG MS-M4-35-C
404639
PEG MS-M4-40-C
404640
PEG MS-M4-45-C
404641
PEG MS-M4-50-C
406247
PEG MS-M3-55-B (6MM AUßENGEW.)
406248
PEG MS-M3-60-B (6MM AUßENGEW.)
406249
PEG MS-M3-65-B (6MM AUßENGEW.)
406250
PEG MS-M3-70-B (6MM AUßENGEW.)
406251
PEG MS-M3-55-C
406252
PEG MS-M3-60-C
406253
PEG MS-M3-65-C
406254
PEG MS-M3-70-C
406255
PEG MS-M4-55-B
406256
PEG MS-M4-60-B
406257
PEG MS-M4-65-B
406258
PEG MS-M4-70-B
406259
PEG MS-M4-75-B
406260
PEG MS-M4-80-B
406261
PEG MS-M4-85-B
406262
PEG MS-M4-90-B
406263
PEG MS-M4-95-B
406264
PEG MS-M4-100-B
406265
PEG MS-M4-55-C
406266
PEG MS-M4-60-C
406267
PEG MS-M4-65-C
406268
PEG MS-M4-70-C
406269
PEG MS-M4-75-C
406270
PEG MS-M4-80-C
406271
PEG MS-M4-85-C
406272
PEG MS-M4-90-C
406273
PEG MS-M4-95-C
406274
PEG MS-M4-100-C
406281
PEG MS-M4-5-C
406282
PEG MS-M4-10-C
406283
PEG MS-M4-15-C
406284
PEG MS-M3-5-C
406290
PEG MS-M3-10-C
406291
PEG MS-M3-15-C
407060
PEG MS-M3-23-B (8MM AUßENGEW.)
407085
PEG MS-M3-23-B (6MM AUßENGEW.)
407586
PEG MS-M3-8-C
407597
PEG MS-M3-8-B (8MM AUßENGEW.)
407612
PEG MS-M4-12-B
407956
PEG MS-M3-18-B (8MM AUßENGEW.)
407960
PEG MS-M3-10-B (6MM AUßENGEW.)
407961
PEG MS-M3-8-B (6MM AUßENGEW.)
408141
PEG MS-M4-18-C
408270
PEG MS-M3-18-C
408945
PEG MS-M3-20-B (6MM AUßENGEW.)
409073
PEG MS-M3-6-B (6MM AUßENGEW.)
409078
PEG MS-M3-6-C
409088
PEG MS-M3-12-B (6MM AUßENGEW.)
409243
PEG MS-M3-40-B (6MM AUßENGEW.)
409362
PEG MS-M3-45-B (6MM AUßENGEW.)
Distance height in mm 5,0 10,0 15,0 20,0 25,0 30,0 35,0 40,0 45,0 50,0 20,0 25,0 30,0 35,0 40,0 45,0 50,0 5,0 10,0 15,0 20,0 25,0 30,0 35,0 40,0 45,0 50,0 20,0 25,0 30,0 35,0 40,0 45,0 50,0 55,0 60,0 65,0 70,0 55,0 60,0 65,0 70,0 55,0 60,0 65,0 70,0 75,0 80,0 85,0 90,0 95,0 100,0 55,0 60,0 65,0 70,0 75,0 80,0 85,0 90,0 95,0 100,0 5,0 10,0 15,0 5,0 10,0 15,0 23,0 23,0 8,0 8,0 12,0 18,0 10,0 8,0 18,0 18,0 20,0 6,0 6,0 12,0 40,0 45,0
Model Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type C (female/ female) Type B (male/ female) Type B (male/ female) Type B (male/ female)
Ø Female thread in mm M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M3 M3 M3 M3 M3 M3 M3 M3 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 M3 M3 M3 M3 M3 M3 M3 M4 M3 M3 M3 M4 M3 M3 M3 M3 M3 M3 M3
Thread depth (inside) in mm 3,0 6 10 10 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 3 6 10 10,0 10,0 10,0 10 10,0 10,0 10 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 10,0 5,0 10,0 15,0 5,0 10,0 15,0 10,0 10 8,0 5,0 7,0 10,0 6 5 9 9,0 10 4 6,0 10 10 10,0
Ø Male thread in mm M3 M3 M3 M3 M3 M3 M3 M3 M3 M3 - - - - - - - M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 - - - - - - - M3 M3 M3 M3 - - - - M4 M4 M4 M4 M4 M4 M4 M4 M4 M4 - - - - - - - - - - - - - - - - M3 M3 - M3 M4 M3 M3 M3 - - M3 M3 - M3 M3 M3
Thread length (outside) in mm 6,0 8,0 6,0 6,0 6,0 8,0 8,0 8,0 8,0 6,0 - - - - - - - 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 - - - - - - - 6,0 6,0 6,0 6,0 - - - - 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 8,0 - - - - - - - - - - - - - - - - 8,0 6,0 - 8,0 8,0 8,0 6,0 6,0 - - 6,0 6,0 - 6,0 6,0 6,0
Width across flats 5,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5 5,5 6 6 6 6 6 6 6 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 5,5 5,5 5,5 5,5 6 6 6 6 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 6 6 6 5,5 5,5 6 5,5 7 5,5 5,5 5,5 7 6 5,5 5,5 6 5,5 5,5 5,5
Material brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass
Material of thread brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass brass
Temperature range -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C -200°C - +300°C
Colour brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured brass-coloured

Price / availability enquiry
