Drawing spacer LPTMINI

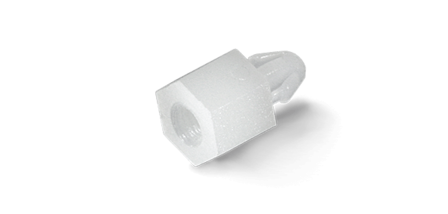

Spacer LPTMINI

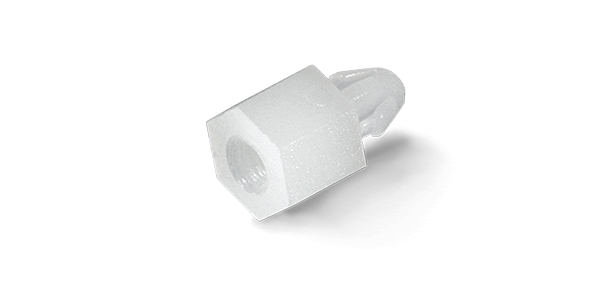

PCB spacer LPTMINI

Spacer with M3 female thread on one side and snap-on mounting on the other. For distance length 5 to 10 mm.

Description
Close
Product description: PCB spacer LPTMINI

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
406646
LPT 500-MINI-M
406647
LPT 600-MINI-M
406648
LPT 700-MINI-M
406649
LPT 800-MINI-M
406650
LPT 900-MINI-M
406651
LPT 1000-MINI-M
Distance height in mm 5,0 6,0 7,0 8,0 9,0 10,0
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Female thread Female thread Female thread Female thread Female thread Female thread
Ø Female thread in mm M3 M3 M3 M3 M3 M3
Outer Diameter body in mm 5,5 5,5 5,5 5,5 5,5 5,5
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural
Ø Mounting hole (A "top") in mm 3,0 3,0 3,0 3,0 3,0 3,0
Overlap (A "top") in mm 2,8 2,8 2,8 2,8 2,8 2,8
Panel thickness (A "top") in mm 1,6 1,6 1,6 1,6 1,6 1,6
