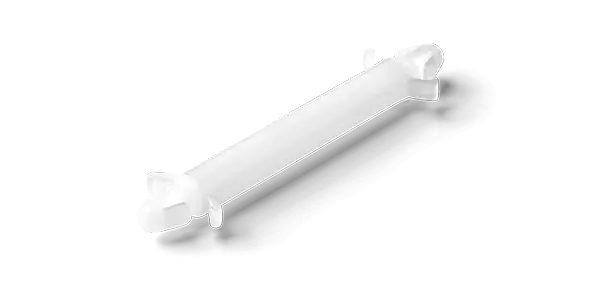

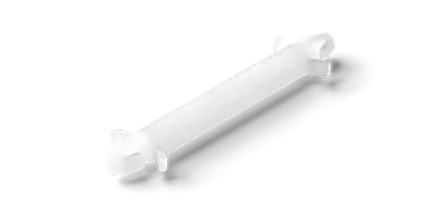

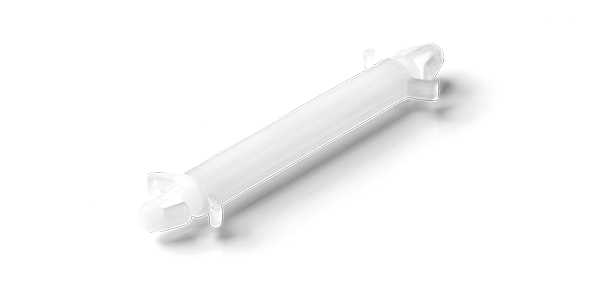

PCB spacer LPT714M

Spacer for snap-on mounting on both sides. For distance length 3.1 to 25 mm.

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
406943
LPT 7140-MINI
406944
LPT 7141-MINI
406945
LPT 7142-MINI
406946
LPT 7143-MINI
406947
LPT 7144-MINI
406948
LPT 7145-MINI
Distance height in mm 3,2 6,8 11,5 15,2 19,8 25,0
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Outer Diameter body in mm 3,9 3,9 3,9 3,9 3,9 3,9
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 3,0 3,0 3,0 3,0 3,0 3,0
Overlap (B "bottom") in mm 3,2 3,2 3,2 3,2 3,2 3,2
Ø Mounting hole (A "top") in mm 3,0 3,0 3,0 3,0 3,0 3,0
Overlap (A "top") in mm 3,2 3,2 3,2 3,2 3,2 3,2
Panel thickness (A "top") in mm 1,0 - 1,7 1,6 - 1,9 1,0 - 1,6 1,0 - 1,6 1,0 - 1,8 1,6 - 1,7
Panel thickness (B "bottom") in mm 1,0 - 1,7 1,6 - 1,9 1,0 - 1,6 1,0 - 1,6 1,0 - 1,8 1,6 - 1,7
