Drawing spacer LPT713M

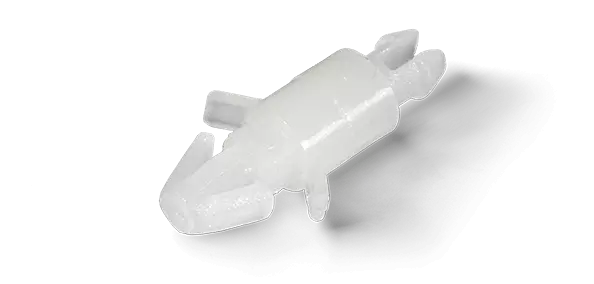

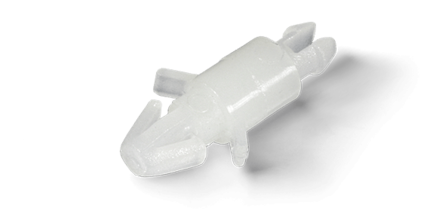

Spacer LPT713M

PCB spacer LPT713M

Spacer for snap-on mounting on both sides. For distance length 5 to 15.8 mm.

Description
Close
Product description: PCB spacer LPT713M

Product variants

6 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
406937
LPT 7130-MINI-M
406938
LPT 7131-MINI-M
406939
LPT 7132-MINI-M
406940
LPT 7133-MINI-M
406941
LPT 7134-MINI-M
406942
LPT 7135-MINI-M
Distance height in mm 5,0 8,0 9,0 10,0 12,0 14,0
Mounting (A "top") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock Snap lock Snap lock Snap lock Snap lock
Material nylon 66 nylon 66 nylon 66 nylon 66 nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2 UL 94 V-2
Colour natural natural natural natural natural natural
Ø Mounting hole (B "bottom") in mm 3 3 3,0 3,0 3,0 3,0
Overlap (B "bottom") in mm 3,35 3,35 3,35 3,35 3,35 3,35
Ø Mounting hole (A "top") in mm 2,5 2,5 2,5 2,5 2,5 2,5
Overlap (A "top") in mm 1,7 1,7 1,7 1,7 1,7 1,7
Panel thickness (A "top") in mm 1,0 - 1,7 1,0 - 1,7 1,0 - 1,7 1,0 - 1,7 1,0 - 1,7 1,0 - 1,7
Panel thickness (B "bottom") in mm 1,0 - 1,7 1,0 - 1,7 1,0 - 1,7 1,0 - 1,7 1,0 - 1,7 1,0 - 1,7
