Drawing spacer LPT712M

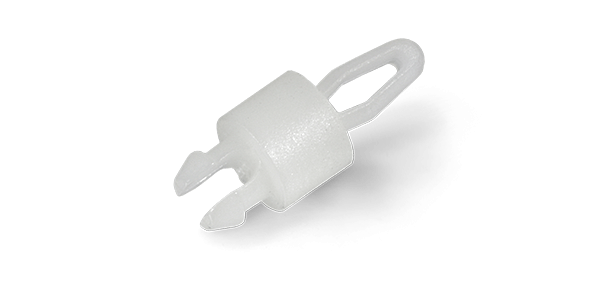

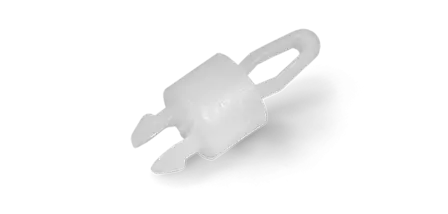

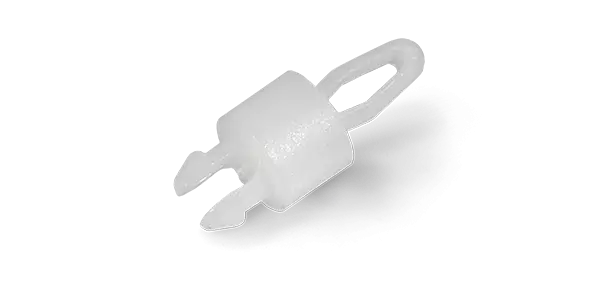

Spacer LPT712M

PCB spacer LPT712M

Spacer for snap-on mounting on both sides. For distance length 3.8 to 6 mm.

Description
Close
Product description: PCB spacer LPT712M

Product variants

2 variant(s) found
Didn't find your desired product variant in the list? However, it is in the drawing! Click here: Product enquiry
406935
LPT 7120-MINI
406936
LPT 7121-MINI
Distance height in mm 3,8 6,0
Mounting (A "top") Snap lock Snap lock
Mounting (B "bottom") Snap lock Snap lock
Outer Diameter body in mm 5,0 5,0
Material nylon 66 nylon 66
Fire protection class UL 94 V-2 UL 94 V-2
Colour natural natural
Ø Mounting hole (B "bottom") in mm 3,3 3,3
Overlap (B "bottom") in mm 3,2 3,2
Ø Mounting hole (A "top") in mm 2,3 2,3
Overlap (A "top") in mm 5,8 5,8
Panel thickness (A "top") in mm 1,6 1,6
Panel thickness (B "bottom") in mm 1,6 1,6
